2020 Hinckley Sport Boat 40x

Portsmouth, Rhode Island

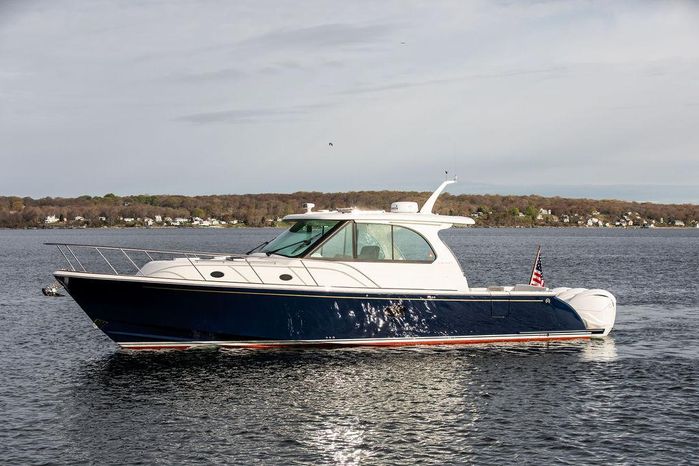

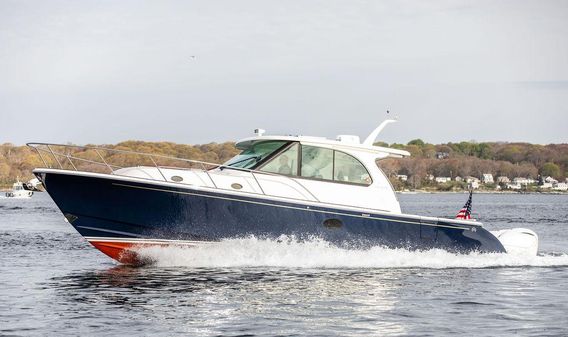

CAVU 3,  a one of a kind opportunity to own a like new Hinckley SBX 40 loaded with all the right options and in absolute pristine condition.  Her owners have had a change of plans and she is available for delivery right now. She spends her winters enrolled in Hinckley’s Yacht Care program and Summers on Narragansett Bay – offerings like CAVU 3 are few and far between.


Stonington Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Hinckley Yacht Brokerage.

Basic Boat Info

Boat Name: CAVU 3
Make: Hinckley
Model: Sport Boat 40x
Year: 2020
Condition: Used
Category: Power
Builder: Hinckley Yachts
Designer: Hinckley Design Group
Construction: Composite
Boat Hull ID: THC4X007C020
Has Hull ID: Yes


Length: 40 ft / 12.19 m
Length Overall: 40 ft / 12.19 m
Beam: 12'5 ft / 3.79 m
Max Draft: 3'1 ft / 0.94 m
Displacement: 20,000 lb
Double Berths: 1
Cabins Count: 1

Engines / Speed

Engines: 3
Engine #1 Specs:
  • Make: Yamaha
  • Model: XTO
  • Fuel: Unleaded
  • Engine Power: 425hp
  • Type: Outboard
  • Propeller Type: Stainless Steel
  • Engine Hours: 252
Engine #2 Specs:
  • Make: Yamaha
  • Model: XTO
  • Fuel: Unleaded
  • Engine Power: 425hp
  • Type: Outboard
  • Propeller Type: Stainless Steel
  • Engine Hours: 252
Engine #3 Specs:
  • Make: Yamaha
  • Model: XTO
  • Fuel: Unleaded
  • Engine Power: 425hp
  • Type: Outboard
  • Propeller Type: Stainless Steel
  • Engine Hours: 252
Total Engine Power: 1,275hp
Cruising Speed: 35 kn
Maximum Speed: 45 kn


Fuel Tanks: 1
Fuel Tank Capacity: 450 gal
Water Tanks: 1
Water Tank Capacity: 82 gal
Holding Tank Count: 1
Holding Tank Capacity: 21 gal


Heads Count: 1
Windlass Type: Electric
Boat Class: Sports Cruiser

Steering System
Joystick Control

Construction of the hull is Hinckley DualGuard® Composite Construction Kevlar E-glass hybrid outer skin and Carbon-fiber inner skin.  SCRIMP® laminated with vinylester resin.  Deck and cockpit are E-glass with closed-cell foam core, SCRIMPED with vinylester resin.

  • Custom Windquest Blue Awlgrip hull paint
  • Off White gelcoat cabin house and non-skid decks.
  • Shark White Double Bootstripe


  • Integrated outboard bracket with telescoping swim ladder and composite teak decking
  • Anchor locker molded into foredeck with hinged hatch and integrated stem/bow roller
  • Electric windlass with wired remote helm controls at foredeck
  • Custom Handrails on pilothouse, cabin top, and in cockpit
  • Optional tow eye for occasional towing of boat at slow speed
  • SS Bow Chocks
  • (8) pull up cleats
  • Custom teak staff with US flag & SS Socket
  • LED USCG approved running lights
  • (6) Phender Pro pad eyes
  • SS water, fuel & waste fills
  • (3) SS Rod Holders

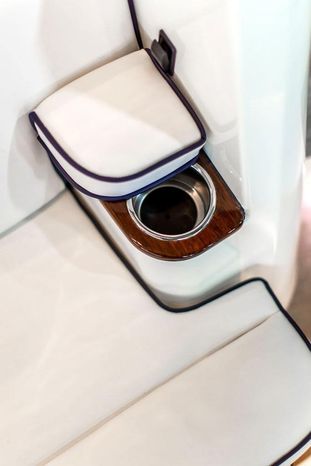

  • Drink Holders:  (13)
  • Freshwater and Raw Water washdown in cockpit. Raw water in anchor locker
  • Transom bump-out with artisanal teak cap
  • Optional Artisanal Teak toe rail with (2) fixed chocks, SS Chafe strips, and custom cast hardware
  • Optional SS Bowrail

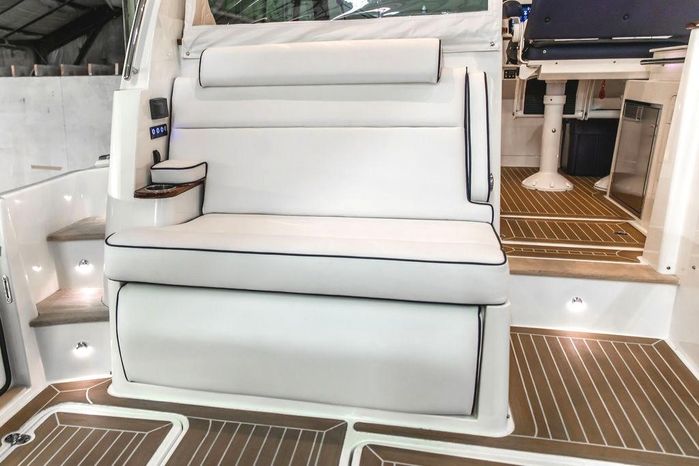

  • Seating:  Aft facing seats with power adjustable footrest and armrests. Aft seat with seat back and storage underneath
  • Powered Sureshade Awning covers amenity aft seating
  • Side door, opens aft with teak clad folding cap and drink holders
  • Starboard side transom door
  • Self bailing cockpit with guttered hatches
  • Pressurized fresh water for shower at transom, wash down, and sink located on pilothouse amenity
  • LED courtesy bridge deck lights, and LED strip lighting under coaming in cockpit
  • Optional corrosion resistant stainless steel cold plate in aft fish well (110VAC water cooled)

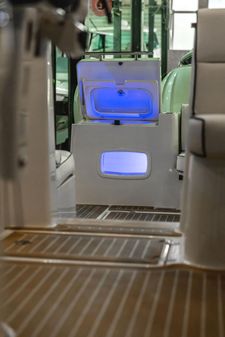

  • Cockpit amenity: insulated cooler at transom
  • Optional live well and bait prep area
  • Optional artisanal teak table with cover mounted on removable pedestal
  • Optional Faux teak decking in cockpit and pilothouse with black seams
  • Optional weather covers for seats
  • Optional Stamoid cockpit mooring cover
  • Molded Roof with LED Lighting
  • Custom contoured windshield with powered opening side windows
  • Pantograph windshield wipers with freshwater washer

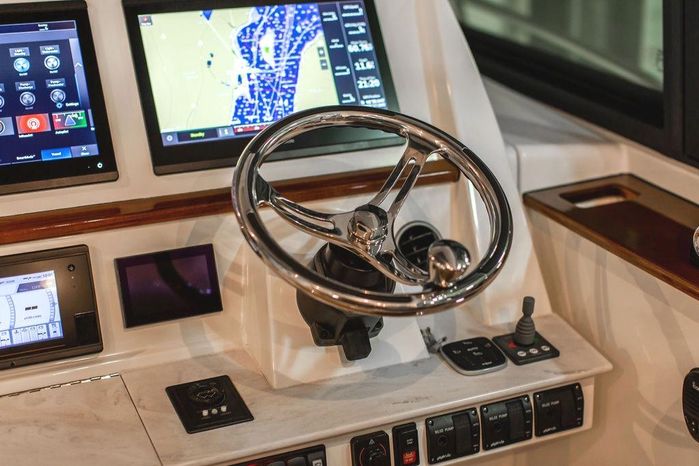

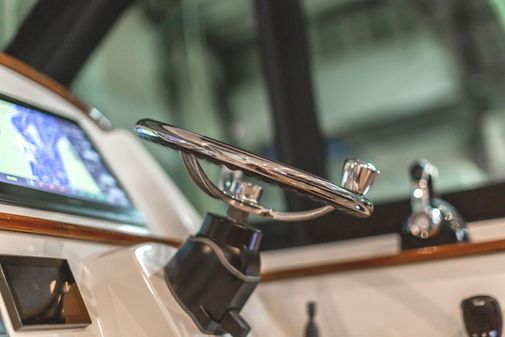

  • Fiberglass console with SS steering wheel and varnished teak
  • Optional stainless steel handrail on centerline in pilothouse overhead

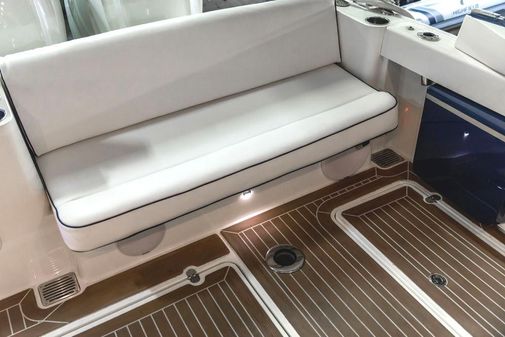

  • Port side L shaped seating
  • Optional Artisanal teak table with cover (removable)
  • Ritchie compass
  • Optional Stidd double wide helm seat with full power fore/aft and up/down
  • (2) optional powered roof hatches
  • Corian counter, sink, drawers, trash, refrigerator and storage beneath
  • Optional Pilothouse A/C


  • Optional Dual Garmin 8616 MFD Chartplotter, Radar, Fishfinder, GPS
  • Optional Garmin GMR Fantom 24 solid-state 4W dome radar with MotionScope
  • Optional Blue/White Lumishore underwater LED lights
  • Optional Garmin Autopilot
  • Optional ACR RCL-100 LED searchlight on hardtop
  • Icom M424G VHF radio
  • Premium Sound 2000Watt Fusion Signature Series Stereo Head with Bluetooth connectivity
  • (8) Coaxial speakers, two component tweeters, and subwoofer
  • Yamaha Helm Master controls with joystick
  • Trim Tabs – Controller with LED indicator


  • 32” Samsung Smart TV on port fwd bulkhead
  • Premium Sound: 2000Watt Fusion Signature Series system
  • (8) 6.5” coaxial speakers, two component tweeters,
  • 10” component subwoofer
  • Lockable sliding cabin door
  • Teak and Holly cabin sole with gloss finish
  • Satin finish cherry bulkheads and Shaker style doors. Satin varnish on cherry trim, doorframes, fiddles, drawer frames
  • Overhead LED lights in galley and head, (2) bulkhead reading lamps, indirect lighting under valances, LED courtesy light on stairs
  • Storage under and outside of berth, (2) cedar lined hanging lockers, storage under head and galley amenities

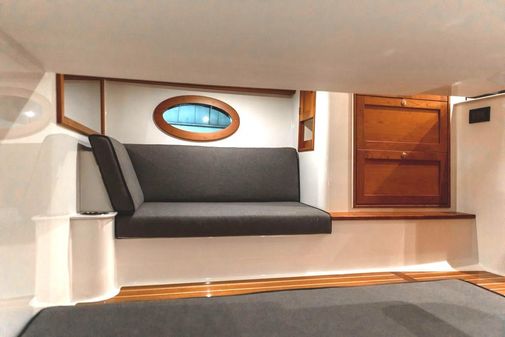

ISLAND QUEEN BERTH with storage and drink holders to starboard. Seating for two on port side.

  • Island Queen berth electronically converts to settee with integrated self-storing table
  • Berth converts to settee that sleeps 2, high gloss teak table

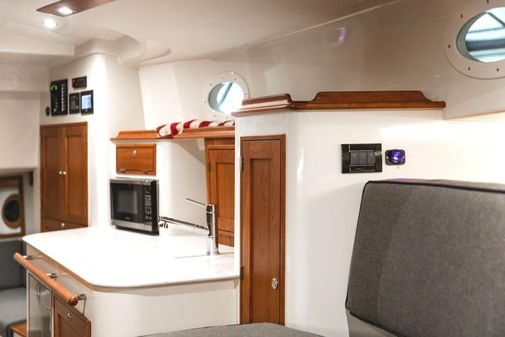

  • DC refrigeration

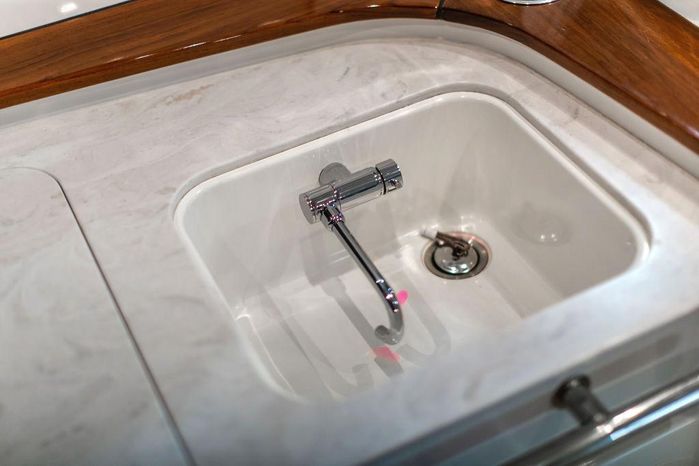

  • Sink with cutting board
  • Microwave
  • Coffee maker
  • Drawer and locker storage
  • Cook top in Limestone Prima

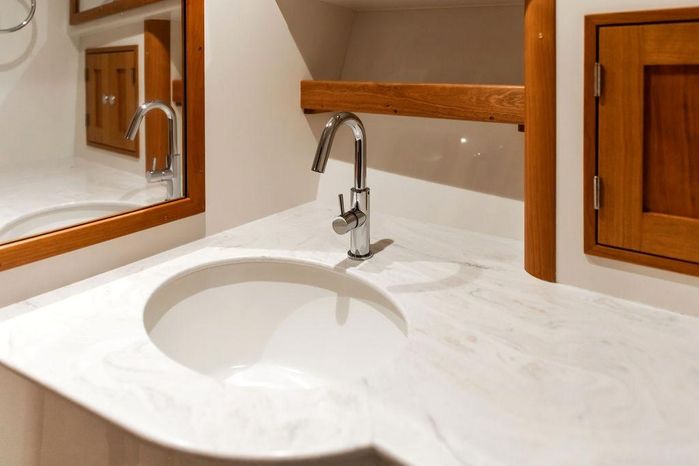

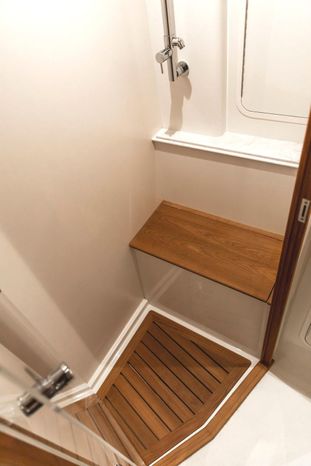

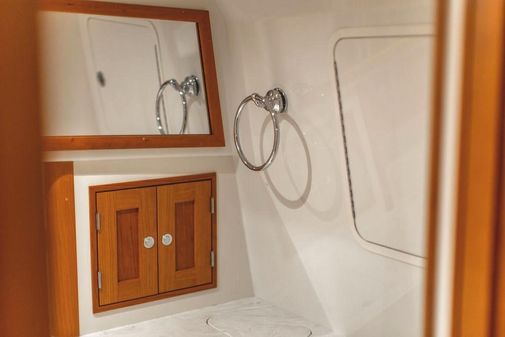

HEAD – oversized head with shower stall & sump pump, hot and cold pressure water, molded sink with Corian counter top in Limestone Prima, electric freshwater toilet with Y valve, towel rack, clothes hooks and mirror.  Bi-fold Lexan door separates shower from sink and head.

  • Optional (3) Yamaha XTO425 outboard engines (5-year transferrable warranties)
  • Optional Seakeeper 3 Gyro stabilization system
  • Optional 7/5kW Cummins Onan Generator
  • Optional Automatic outboard flushing system
  • Optional Pilothouse Air Conditioning
  • Interior Cabin Air Conditioning
  • Three stainless steel propellers
  • Side Power DC bow thruster
  • Power assisted hydraulic steering with tilt wheel
  • SS fuel filter housings
  • Optional:  All engine branding removed from outboards
  • Optional:  Upgrade engines to pearlescent white factory finish
  • Arid Bilge System (removes all still water from the lowest part of bilge to create a completely dry bilge environment).



  • 50 amp shore power system inlet with AC panel, 35 amp and 75 amp battery chargers, and outlets in the interior
  • C-zone digital switching. Full function of all DC systems on touchscreen located adjacent to galley.
  • Optional 7.5kW Cummins Onan Generator
  • Inverter supports Microwave and outlets
  • Full control on Garmin display at helm
  • (6) 12 volt marine grade AGM batteries
  • AFI Flush mount 12-volt air horns
  • Compass: Ritchie, mounted at helm seat
  • Fire Extinguisher: Three 2-1/2 lb. dry chemical
  • Flares: USCG approved flare kit
  • Life Jackets
  • Dock Lines
  • Running Lights: Approved running and masthead lights
  • Fenders: Three 8" x 20" inflatable fenders with Polartec fleece covers
  • Boat Hook
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
