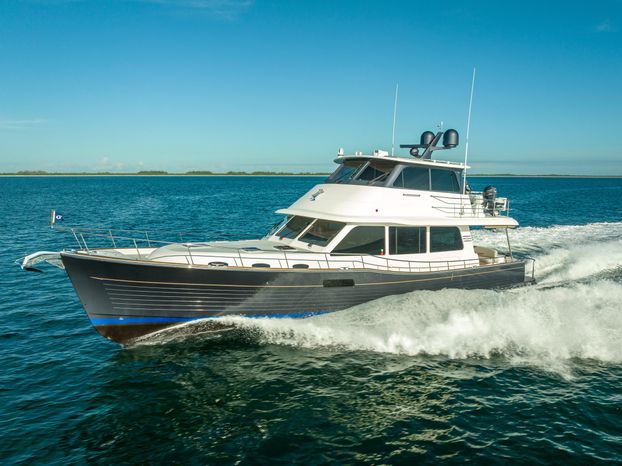

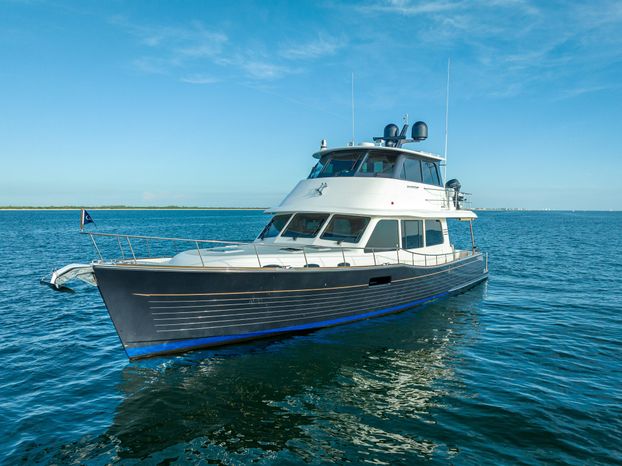

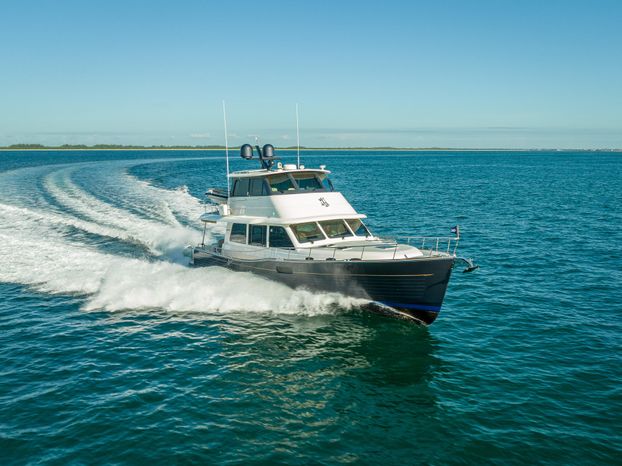

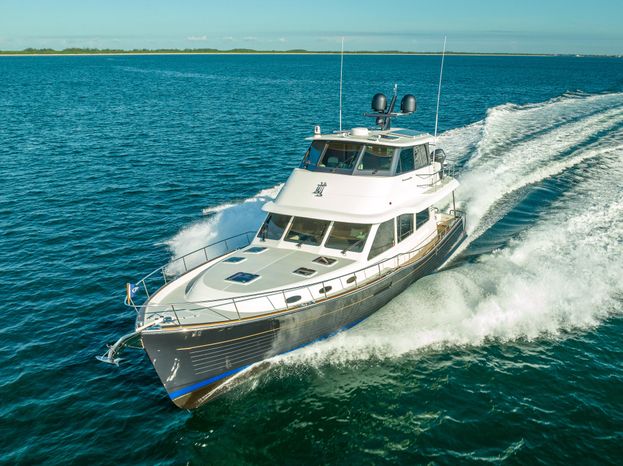

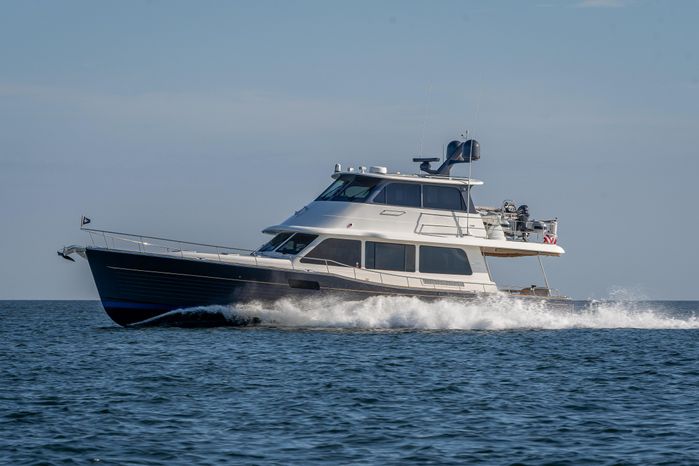

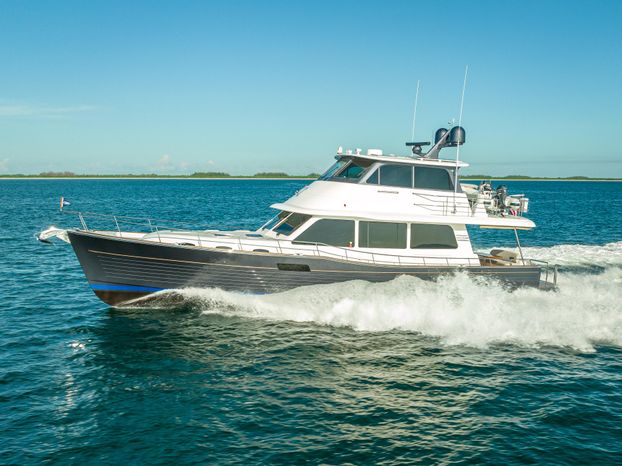

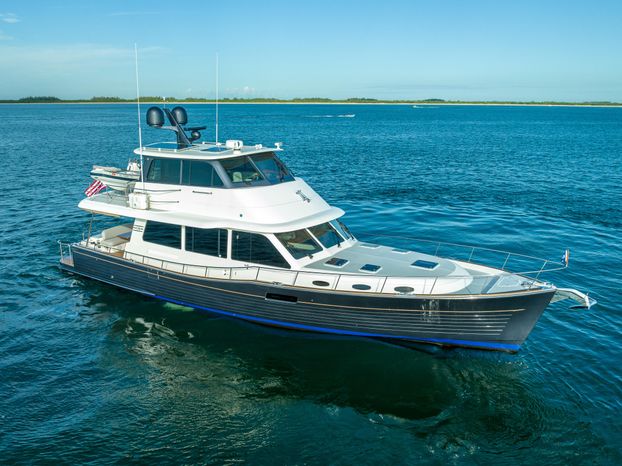

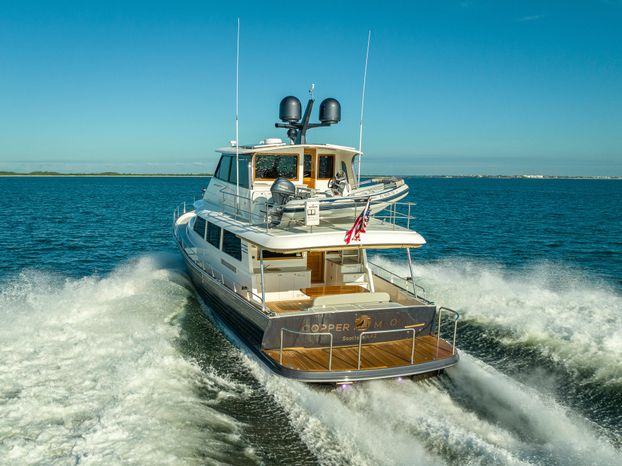

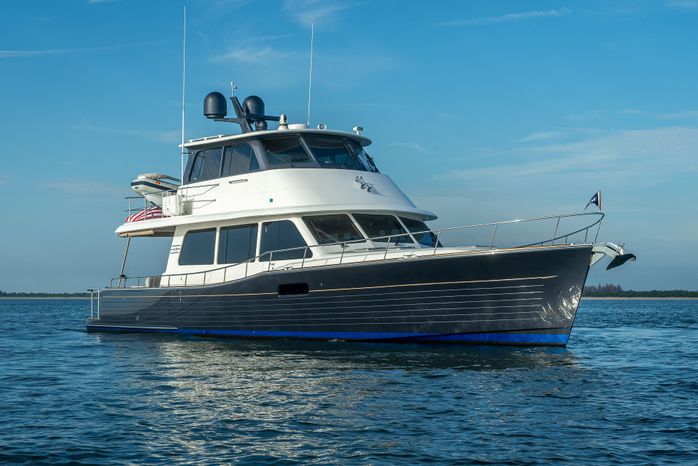

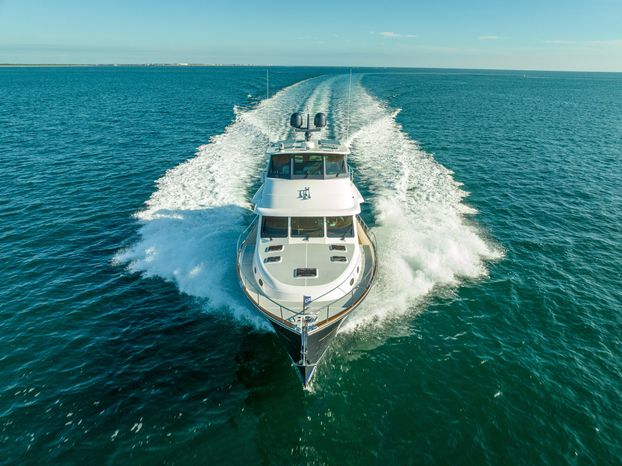

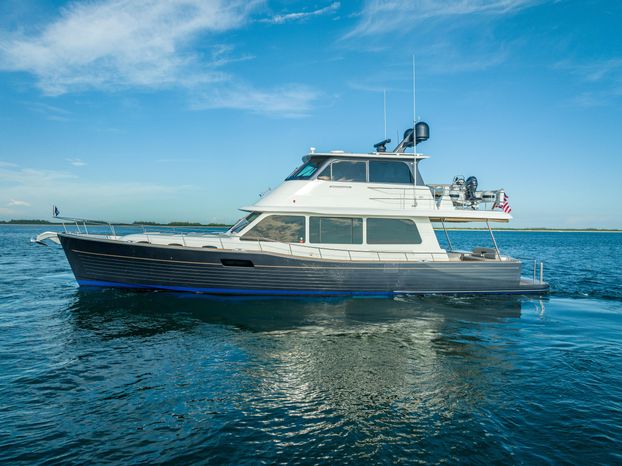

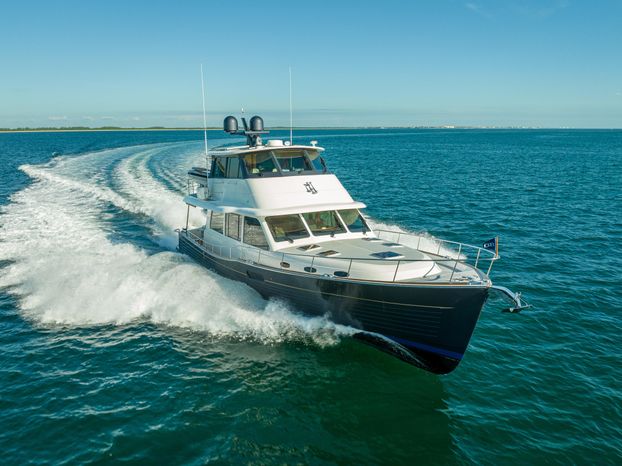

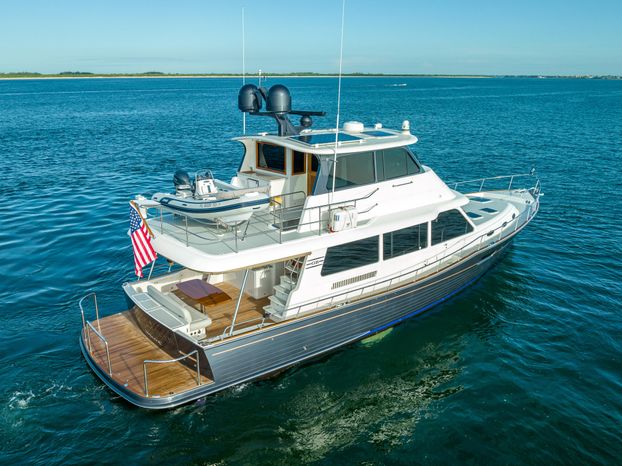

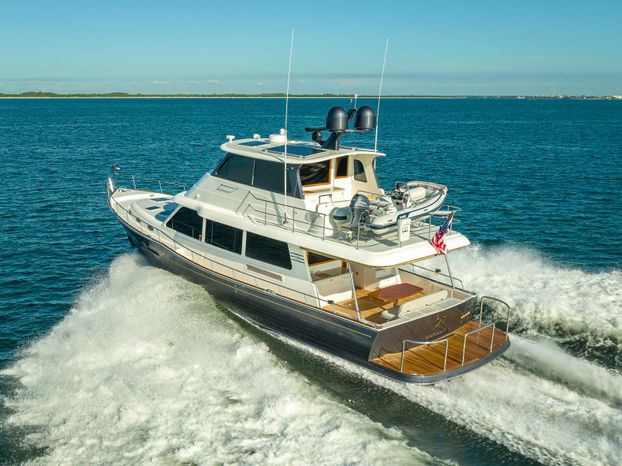

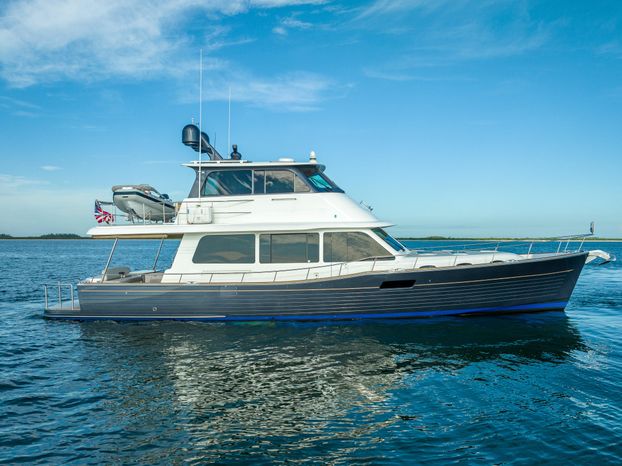

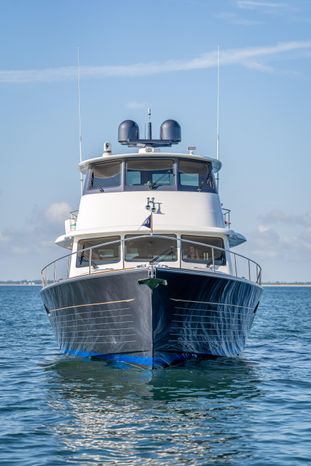

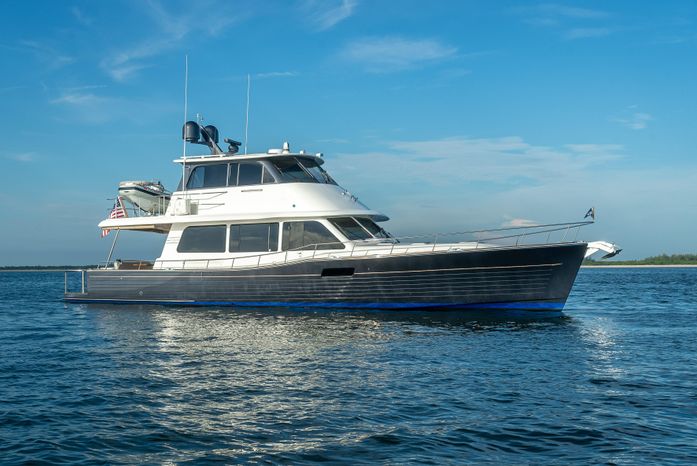

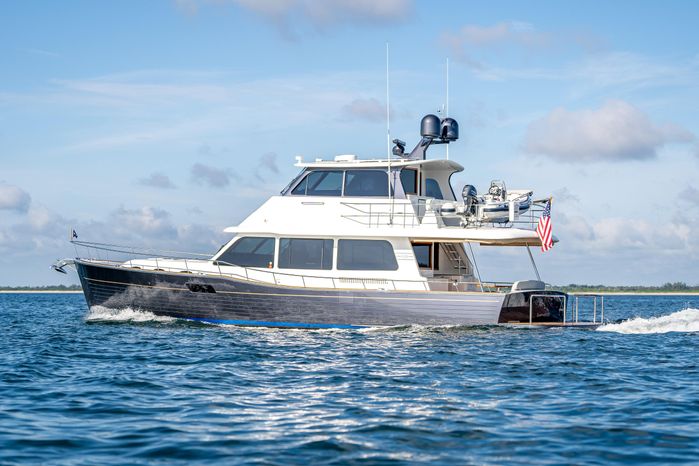

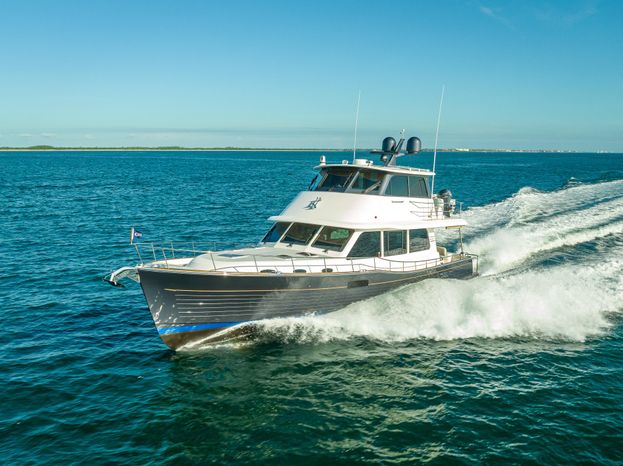

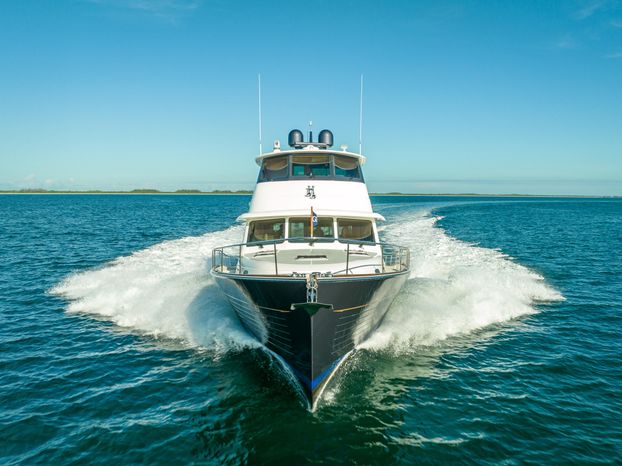

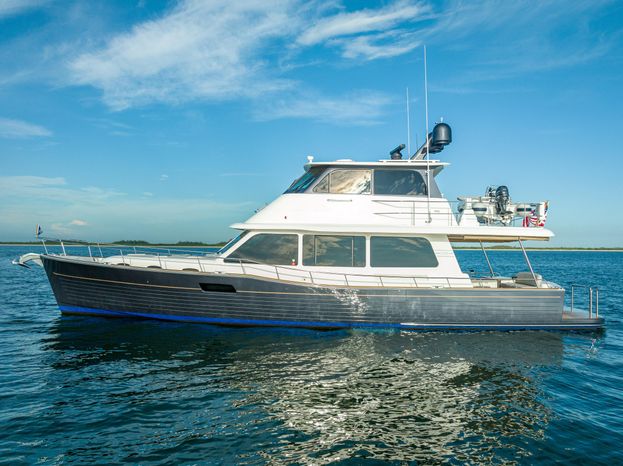

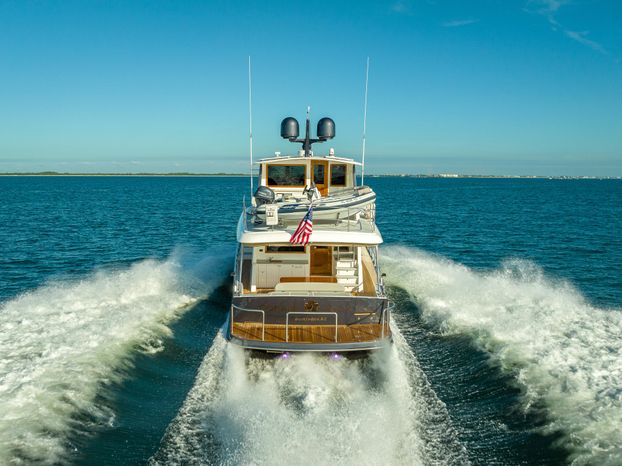

2022 Grand Banks GB60 Skylounge

Specifications

Construction

• Hull is vacuum-infused E-Glass with carbon fiber in structural areas, cored with Corcell and Airex foam, stitched multi-axial fabric, and vinylester and epoxy resins. The deck and superstructure are fully infused carbon fiber.
• All bulkheads and fixed furniture are structurally bonded to the hull and deck for superior strength and rigidity.
• All exterior strength steel fittings are 316 marine grade stainless
• Watertight collision bulkhead located in the bow
• Hull, Skylounge Bridge Wrap & Mast Color – Twilight Gray Metallic, Custom
• Boot Top – Mid Atlantic Blue Metallic, Custom
• Cove Stripe – Gold, Custom
• Deckhouse– GB White (Gelcoat)
• Antifouling - Micron Extra 2 #YBC 704 Black
• Propspeed foul release coating on all gear

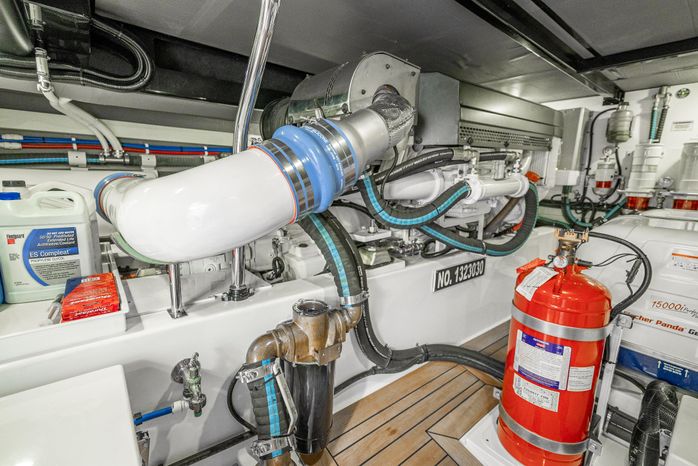

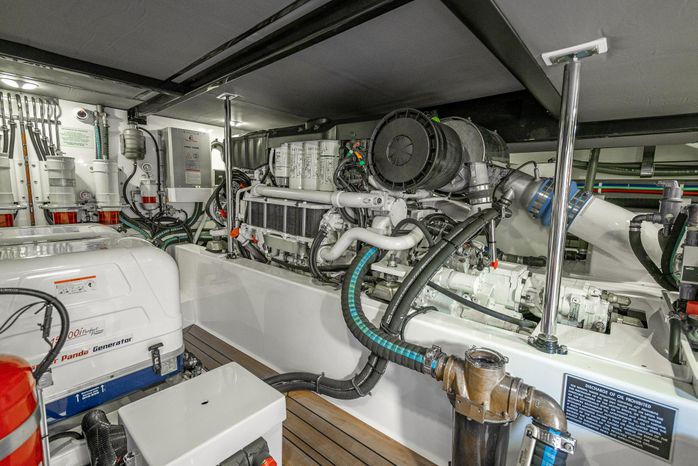

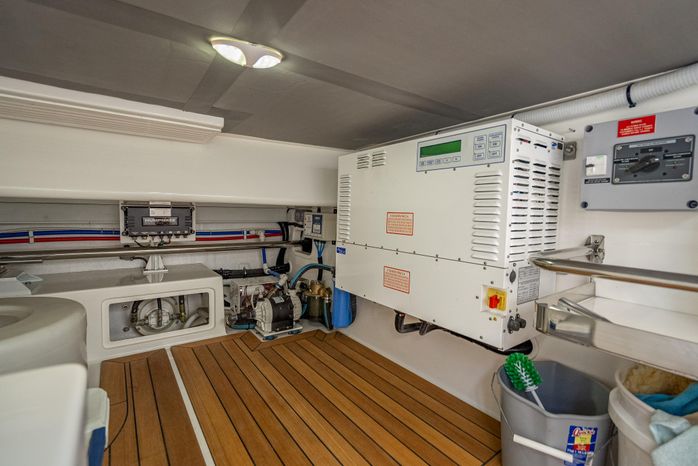

Engine & Mechanical Equipment

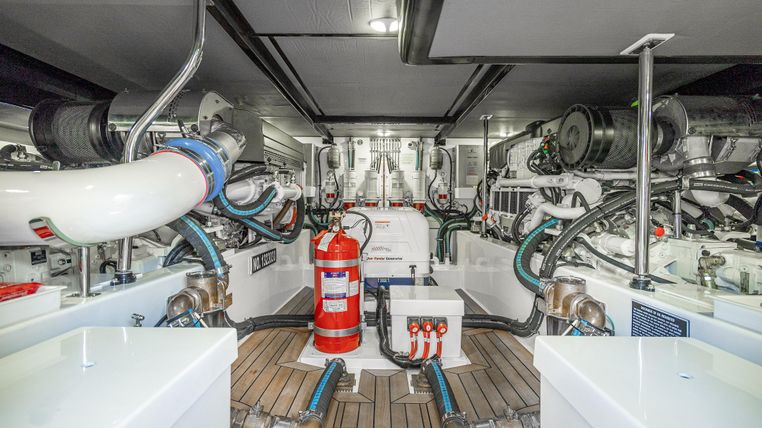

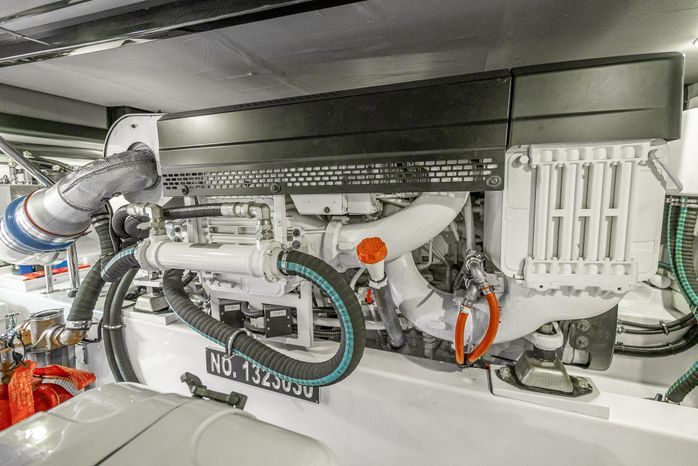

• Twin Volvo D13 @ 900hp each, conventional shaft drive – 485 hours each as of June 2023
• Twin Disc MGX 5096A marine transmissions and Twin Disc EC300 Controls
• EJS Control System with EJS Joystick and Positioning Controls at both stations and cockpit docking station

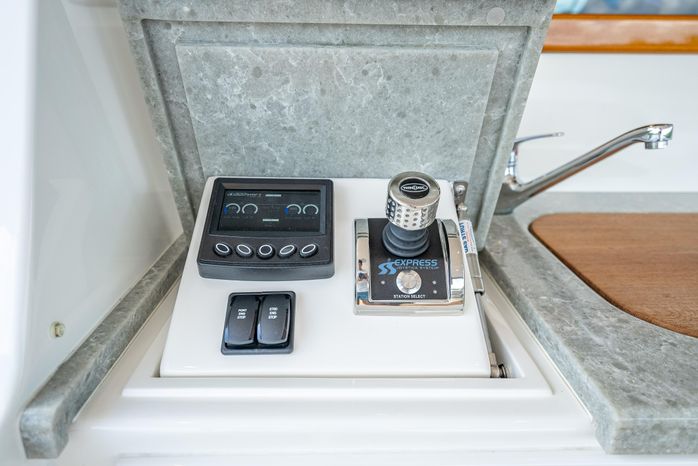

• Remote Docking Station, flip-up 3rd Station at port cockpit locker/wet bar complete with Joystick, Upgrade

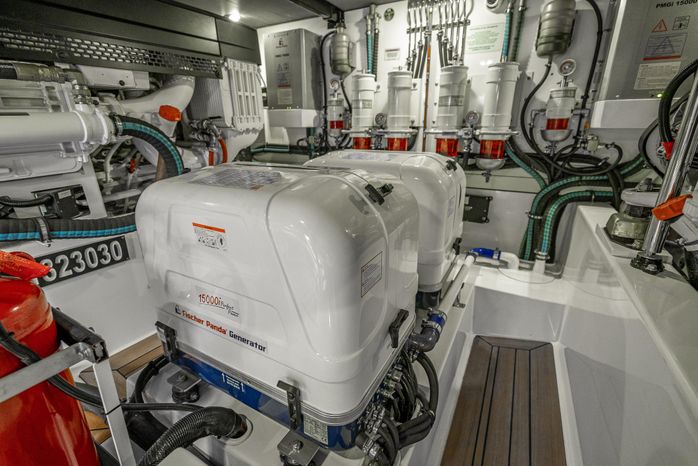

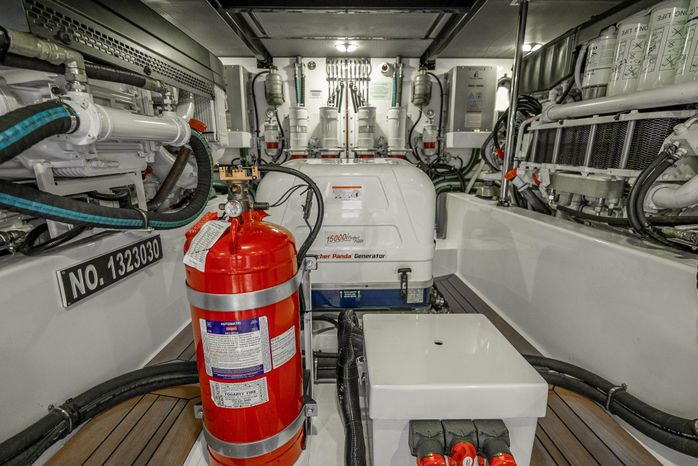

• Generator Upgrade: Fischer Panda (2) x 15000i – Hours: 414, 387

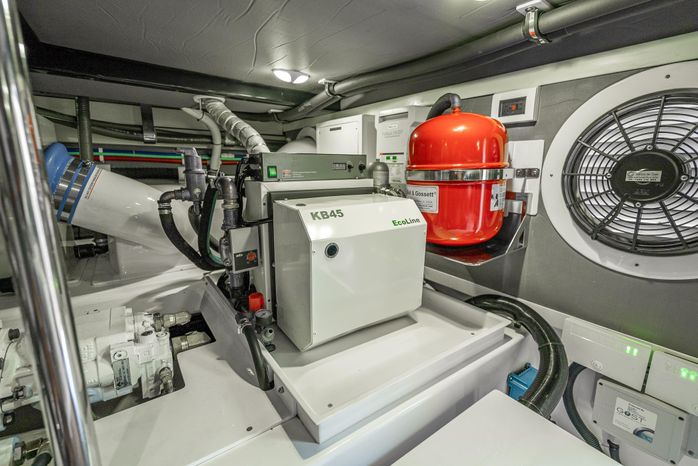

• Diesel Heater, Kabola Disesel Heater System, 81K BTU with 10x Air Handlers and 2x Windshield Defrosters, Custom Upgrade

• Humphree Fins 0.8M2 Stabilization System + Humphree Trim Tab interceptors

• Bow & Stern Thrusters ­– Hydraulic Proportional Bow and Stern Thrusters (EJS Package)
• Groco G3 Oil Change Kit
• Teak Decking in Engine Room
• Engine raw water intake strainers
• Engine room faucet, freshwater, cold only
• Larger Water heater, 30-gallon capacity, Torrid Horizontal Series MHS 30 IX, Upgrade
• Custom sound insulation for engine room and mechanical room
• Main Engine Exhaust System, custom marine exhaust with custom gas/water separator
• Fire extinguisher, Engine room

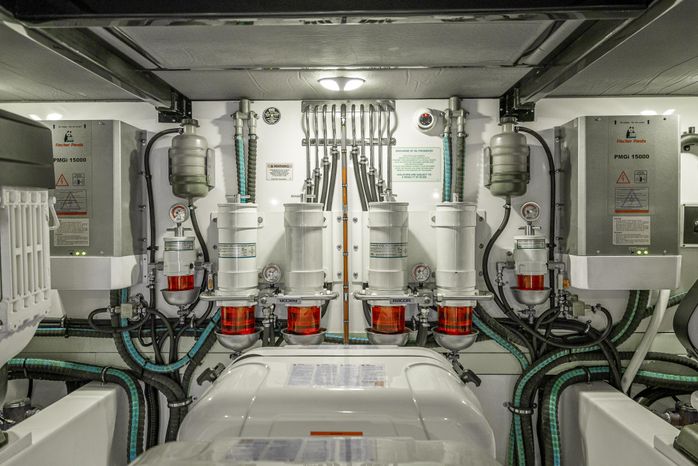

• Fuel filters, Racor water separators on each engine (duplex) and generator (single)
• Fuel tank, full beam FRP tank, 1,532 gallon capacity
• Generator exhaust system, Custom with gas/water separator
• Veem Star Propellers, 5-blades, nickel-aluminum-bronze, Upgraded Propeller Option
• Set of spare Veem Star propellers, 5-blades, nickel-aluminum-bronze; Upgrade
• Kelp Deflector, fwd of Stabilizer fin port/stbd, Upgrade
• Rope Cutter, Quickutter Line Cutter, Upgrade
• Groco SBV-2500 Safety Seacock in lieu of standard, Upgrade
• Shaft Temet 25, Sure Seal shaft seal, Tides Marine
• Retrofit Tides Shaft Seals with temperature sensor #TPS-DMK and remote monitor unit #TPS-RDPN, Upgrade
• Struts, Teignbridge
• Seafire Fire Suppression System; inspected and approved June 2023
• Steering, Hypro Marine fly by wire/hydraulic
• Water purification system, 3M high-glow series in Galley & Icemaker
• Watermaker, Dometic Sea Xchange XTC1800 w/ Plankton Pre-Filter, Upgrade
• Water tanks, Polyethylene, food-grade, 290-gallon capacity
• Frigid Rigid Freezer at Lazarette, Upgrade
• Custom larger black water tank, 160-gallon capacity + Skylounge tank, 26 gallons
• Freshwater pump, Marco UP6/E-DX Electronic Dual Pump System

Electrical Equipment

• GOST Security System, Upgrade
• Electrical System: 120V / 220V, 60hZ, 24V DC, 50-amp x 2; Second 50-amp dedicated to Air Cond for both Bow & Stern
• Power Frequency Converter, ASEA AC15 Shorepower Converter w/Isolation Transformer (8.0KVA) capability for dual EU/USA usage; ventilation and bypass included; Upgrade
• Electrical AC/DC System Upgrade – for running 220V equipment from Inverter including upgraded DC charging system
• Upgraded Victron Quattro Inverter from 5.0KVA to 8.0KVA
• Step down transformer 8.0KVA
• Auto Transformer 1KVA
• (2) x Sterling AB24-200-amp Charger
• (2) x Mitsubishi Alternator 24V 80-amp
• (2) Volvo Alternator 28V 110-amp
• Air-conditioning, custom designed Dometic system:
• 1x 27K BTU for Skylounge
• 2x 18K BTU for Main Deck
• 1x 16K BTU for Starboard Lower Deck
• 1x 12K BTU for Port Lower Deck
• Battery System:
• Start Batteries
• Generators – Lifeline (2) x GPL-24T 80AH
• Engines – Lifeline (2) x GPL-30T 150AH
• Lithium House Batteries – Total of (5) x 100AH with additional (2) x LFP24-100P Deep Cycle Battery 24V 100AH
• Battery chargers, 12 & 24V ProMariner Chargers
• Victron 24V Inverter Charger 200-amp
• Battery disconnect switches, BEP, remote motorized
• Battery paralleling, BEP

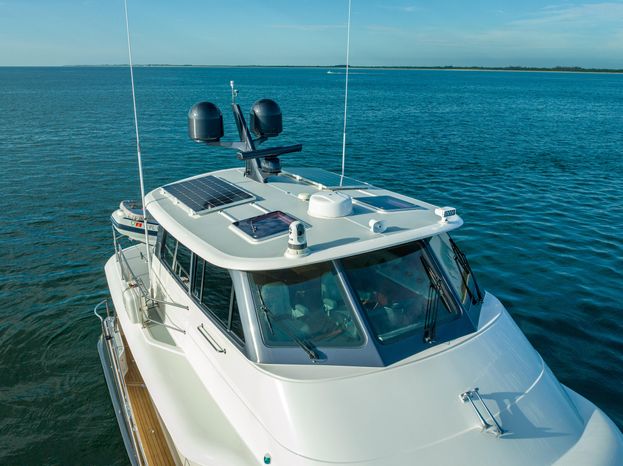

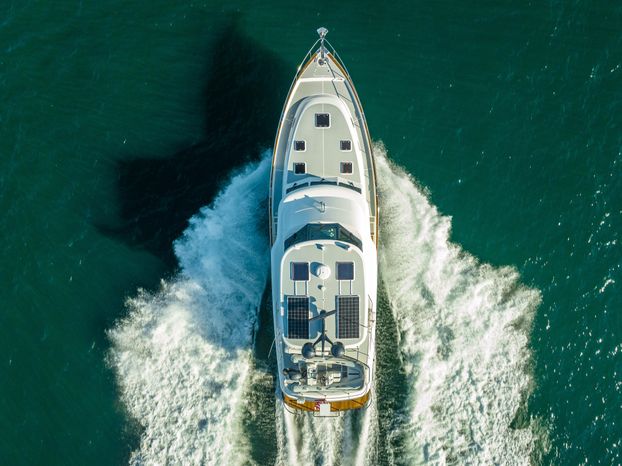

• (2) Victron Energy Solar Panels 360W
• Bilge Pumps, Four (4) units, DC, automatic, with high water alarm at helm(s), 2,000 gallon/hour, 24V + Emergency Crash Pump on Main Engines
• AC Outlets, with GFCI protection, Vimar
• DC outlets, 12V, two units, one at each helm
• Additional Outlets: 1x AC Outlet at Helm (near current USB/DC outlet); 1x AC Outlet (GPO) at port salon (to power Loveseat motor/mechanism), Upgrade
• Distribution panels, AC/DC
• Back-Up Paneltronic 24V DC Switch Panel with (6) spare breakers, Upgrade
• Dedicated 24V DC Outlets for outrigger and downrigger in cockpit
• Separate Breaker for Flybridge Plotters, Upgrade
• Engine room lights, DC, LED
• Engine start/stop, at both helms
• Holding tank with direct discharge pump, 160 gal. + dedicated day head tank 26 gal, Custom Upgrade
• Holding tank level indicators at lower helm station
• Maretron Tank Monitoring System, Upgrade
• Horn, Kahlenberg Double Air Horn, Chrome
• Searchlight, ACR Artex RCL-100 LED
• Icemaker, AC
• Navigation lights, DC, LED
• Shorepower inlet aft, 1 x 50-amp, Glendinning Cablemaster with 60’ cable in lieu of std 50’ (upgrade)
• Additional 50-amp Shore Bow & Stern Dedicated to Air Cond

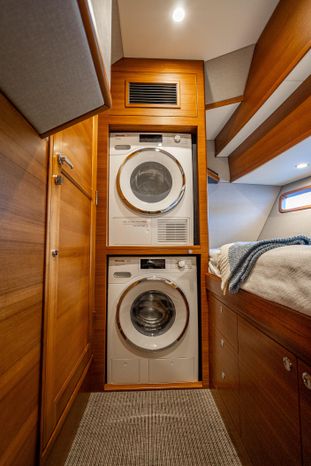

• Washer/Dryer, Miele full-size stacked units in lieu of combo, in stbd Stateroom, Upgrade
• Windshield wipers w/washers, intermittent-low-medium-high speeds, electronic touch control panel, Hepworth
• Wiring, Marine-grade tin-plated copper

Entertainment

• KVH Tracvision TV-7 with DirecTV prep
• SAT Domes, mounted on Mast, painted "Twilight Gray Metallic" to match hull color
• TVs:
• Salon – custom drop-down Samsung 55” LED Smart TV (upgrade, larger than standard)

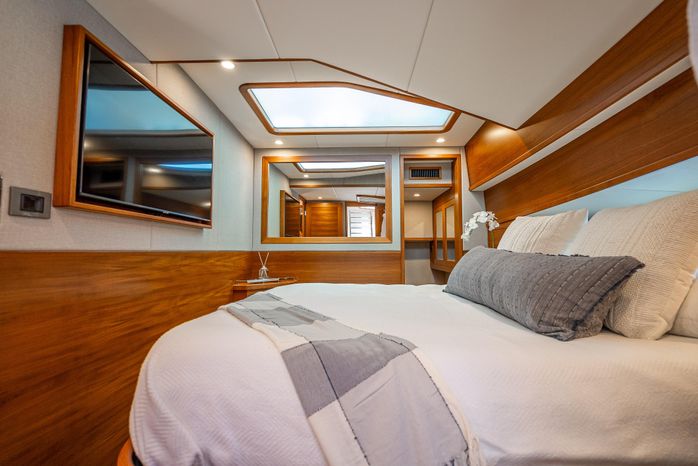

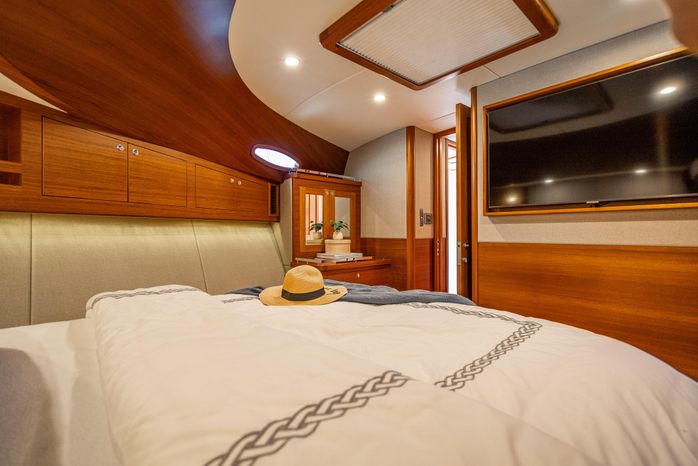

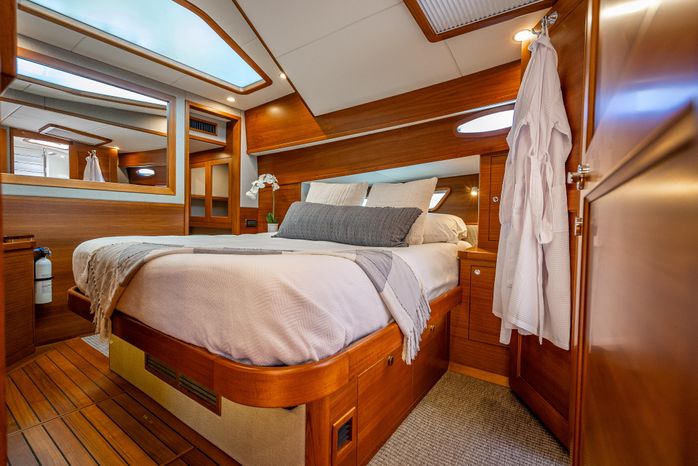

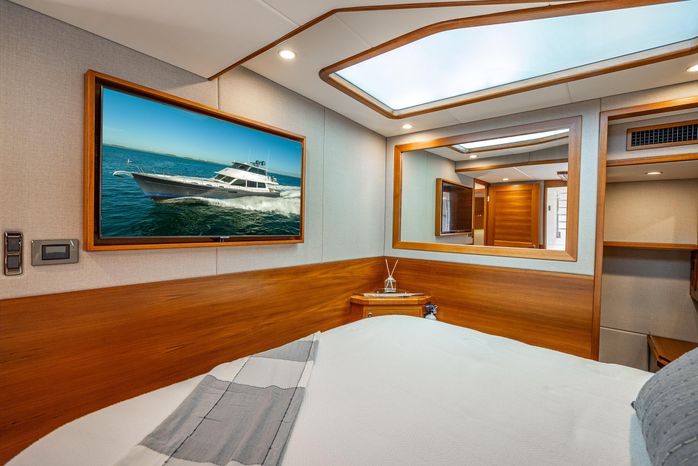

• Master Stateroom – Samsung 43” LED Smart UHD TV

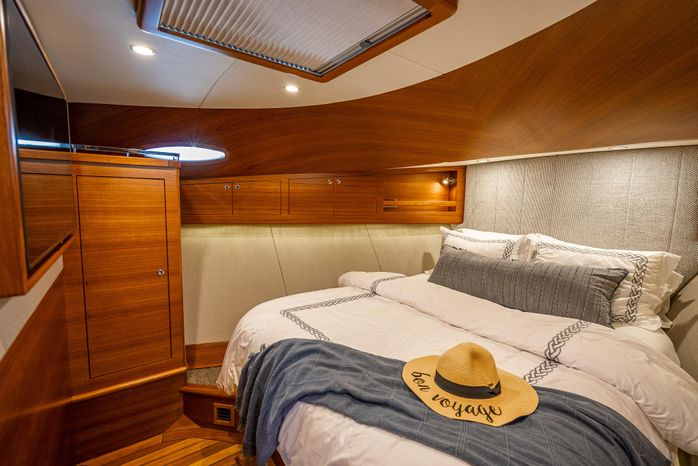

• Fwd Stateroom – Samsung 43” Smart UHD TV
• Audio, Fusion Series stereo system with Speakers at Salon, Cockpit & Flybridge/Skylounge

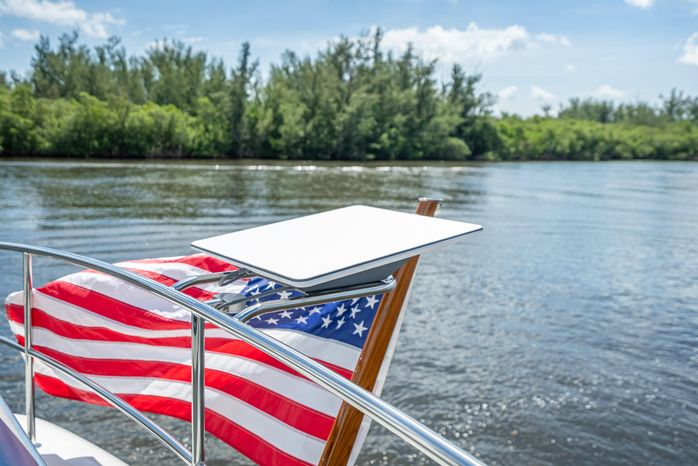

• Starlink – Marine High Performance Package

Exterior Equipment

• Passerelle/Gangway, Opacmare Extending Box Gangway 1041/31, at stbd transom
• (4) Underwater Lights, “Full Color” Aqualuma Gen 5 RGB 24 Series, 2x units at transom and 1x unit each port/stbd aft sides, Upgrade
• Custom Designed Teak Removable Burgee Poles at bow, Custom Upgrade
• Liferaft, 1x Rescyou Pro Liferaft, 6-person in container w/hyrdrostatic release, mounted on stbd railing, Custom Upgrade
• Windlass, Muir Storm VR3500 Hydraulic Windlass, Upgrade

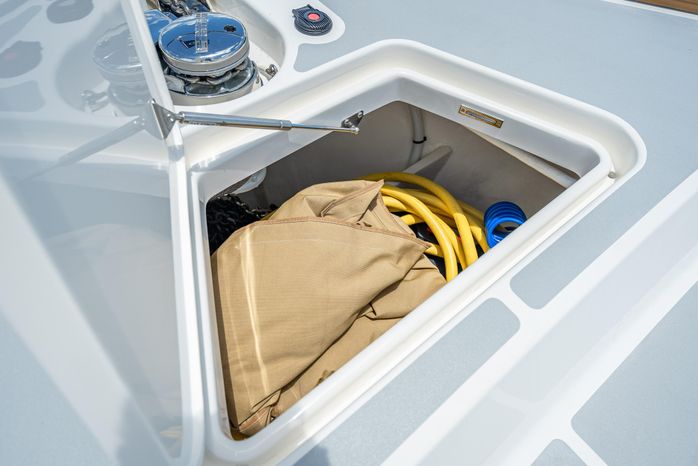

• Anchor chain locker, self-draining
• Anchor platform, Stainless steel, single stainless-steel roller
• Upgraded Anchor & Chain: 60KG Ultra Anchor with stainless-steel swivel, 100m of galvanized chain, 10m rope
• Anchor locker flooring is Teak decking
• Anodes, Maddox Composite Alloy Anode
• Non-skid – Awlgrip “Light Gray” G1001
• Cleats, ten (10) standard, for mooring, stainless steel, fixed
• Cleats, Port & Stbd pop-up cleats on swim platform with additional small cleats mounted to center of staple rail to easily tie tender, Upgrade
• Courtesy & Overhead Lights, LED
• Deck fills, fuel, water and waste pump-out, at side decks

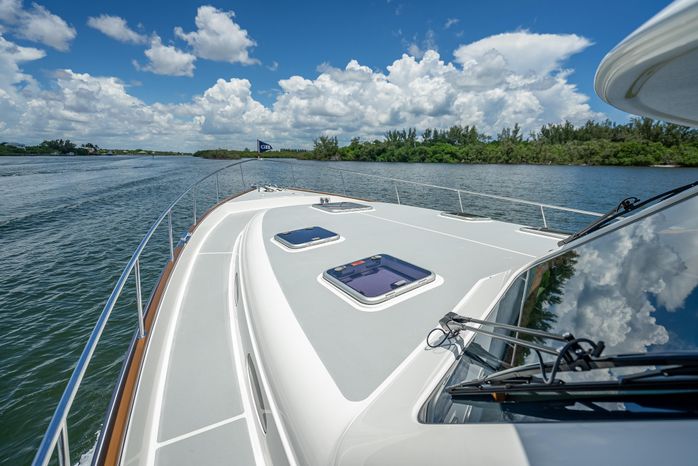

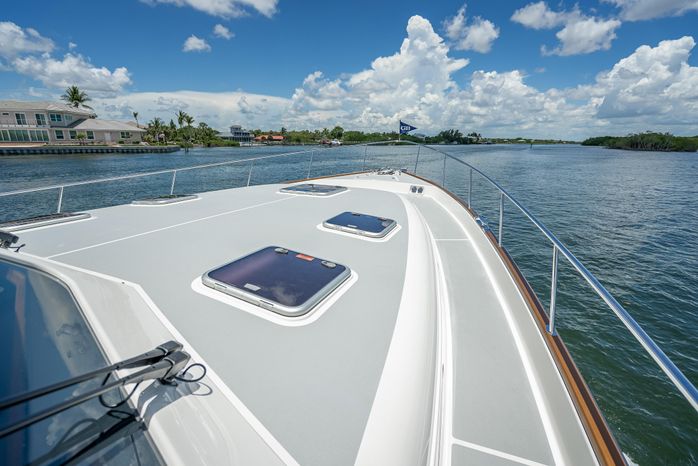

• Deck hatches, opening w/screens & blinds
• Flagstaff, varnished Teak, with stainless steel holder, at stern and stainless steel at bow
• Freshwater + Saltwater washdown both bow and stern, Upgrade
• Grab rails, stainless steel
• Rail gates, stainless steel, port and starboard
• Rubrail, heavy-duty, stainless steel profile
• Safety rails, Main Deck and Flybridge
• Swim ladder, stainless steel, collapsible sectional
• Swim platform, integral with Triple Safety Rails – 3x stainless steel staple rails, w/ 2x removable curved corner rails and 1x fixed center rail, additional small cleats  mounted center, Upgrade
• Toe rail, painted composite, Cromax MY055.60
• Windows, grey tempered glass at salon sides, clear tempered glass at windscreen, bonded in place
• Extensive Exterior Canvas Package, Sunbrella
• Outside/Inside lockable salon aft, pilothouse and skylounge door

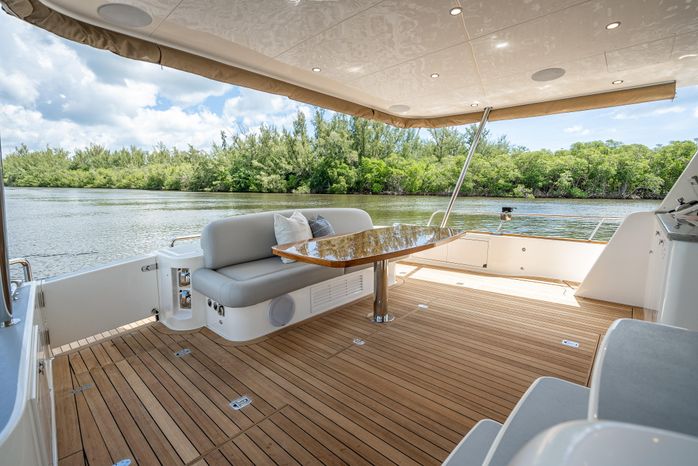

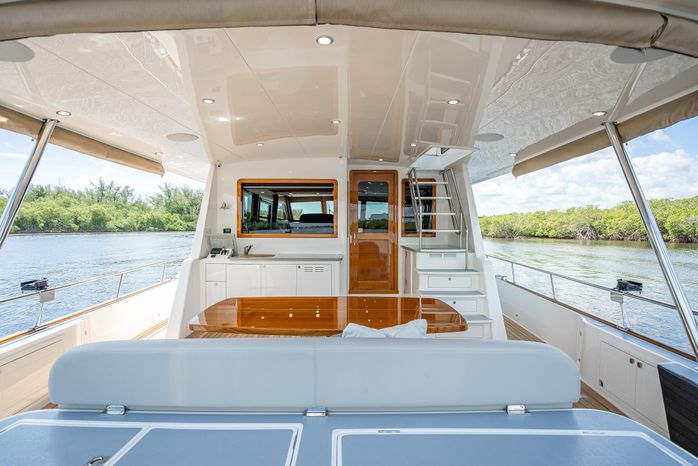

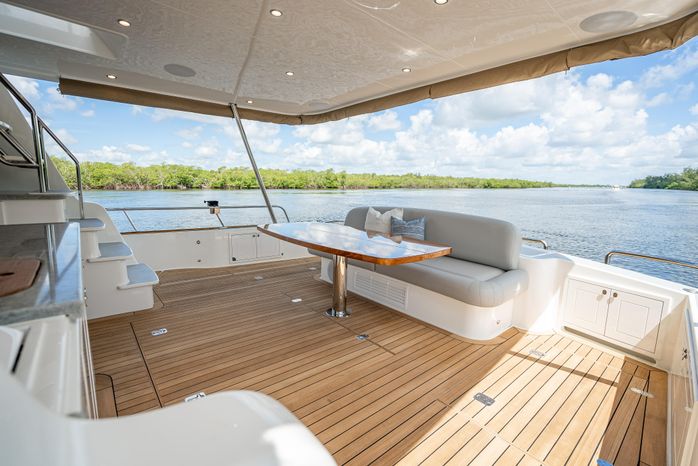

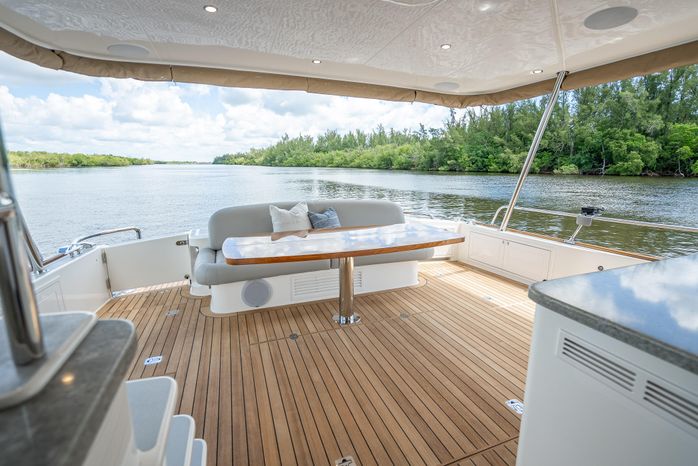

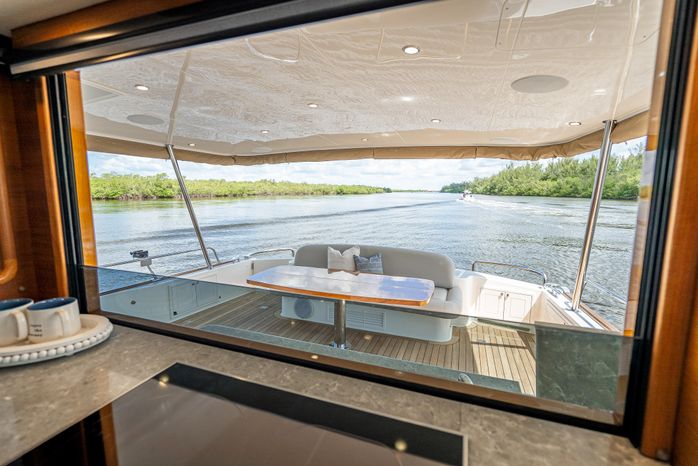

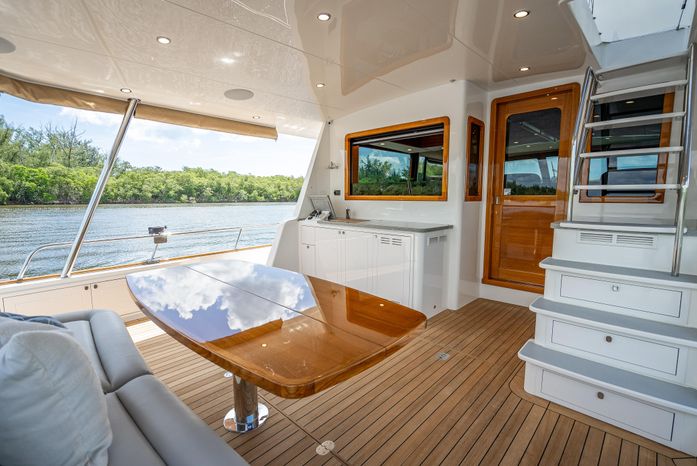

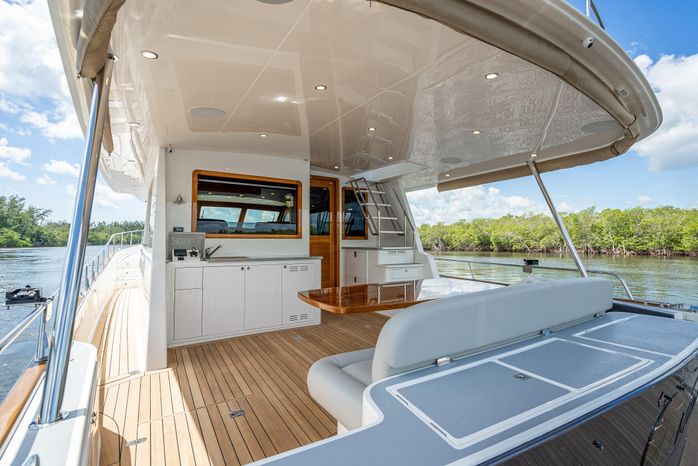

Aft Deck/Cockpit

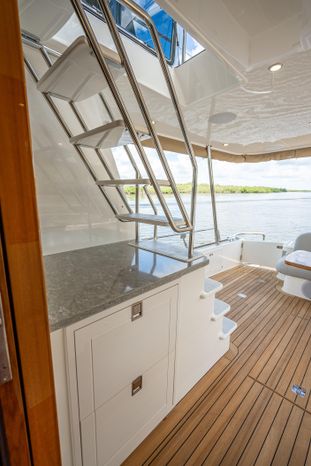

• Custom Aft Staircase to Flybridge – composite treads with non-skid in lieu of teak; Custom stainless steel hand rails (1 additional)
• Custom security for hatch at FB staircase to prevent unauthorized access to upper level/skylounge
• Downriggers Base, 2x stainless steel base plates mounted port & starboard cockpit railing for Cannon Low-Profile Swivel Bases and Cannon Downrigger, complete w/dedicated 24V DC outlets (at each base), Custom Upgrade
• Internet Cable Inlet, Marinco #TV6592 stainless steel (installed close to shore power inlet; cable run to entertainment/stereo locker below helmseat), Upgrade

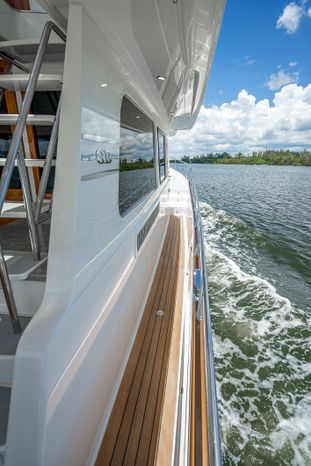

• Teak Decking on the Cockpit, Swim Platform and Side Decks (up to the step; no teak fwd of steps)
• Lazarette hatch, Teak, pneumatic
• Lazarette custom storage shelves, Upgrade

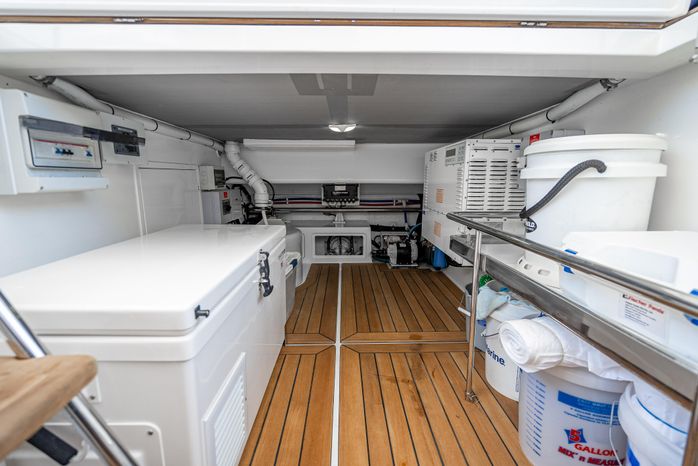

• Lazarette flooring is Teak decking
• Self-draining cockpit, stainless steel drains, one each port and starboard
• Shower in Cockpit hand-held w/retractable hose, hot & cold
• Transom door, fiberglass w/latch

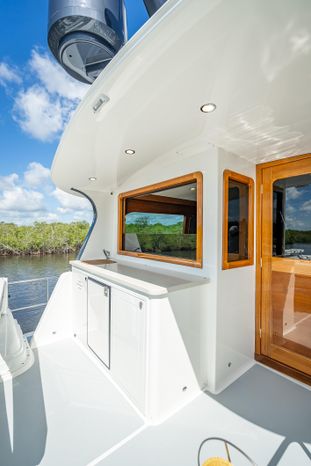

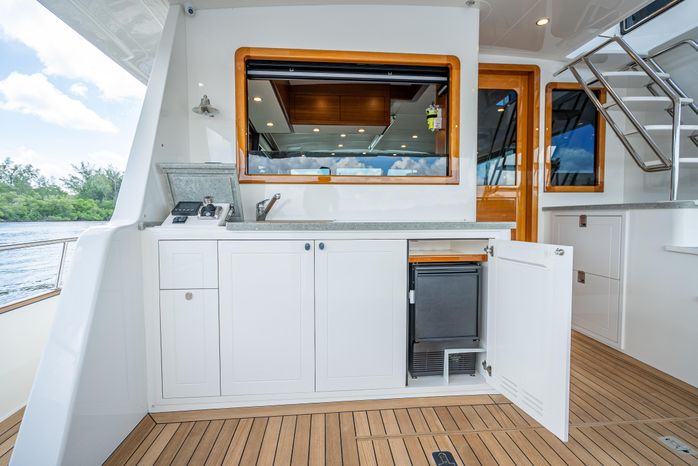

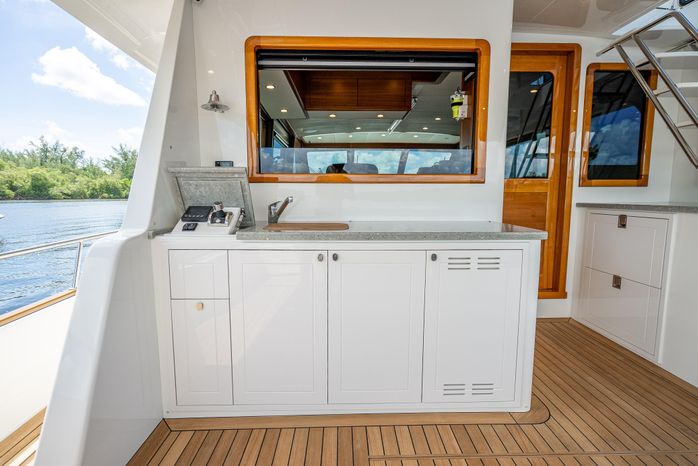

• Port Cockpit Wet Bar with Silestone “Ocean Jasper” Counter, U-Line BI-95 Icemaker and hidden trash bin storage
• Triple swim platform safety rails (Staple Rail): 2x movable curved rails (port & stbd) and 1x fixed center rail; storage sockets at port and stbd

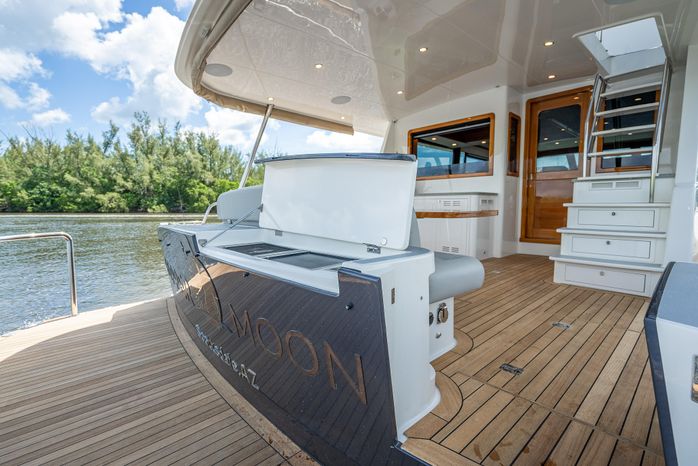

• Transom lift-up Kenyon Electric BBQ with hot plate and storage locker
• Aft Cockpit Seating, forward-facing
• Large high gloss Teak Table, fixed with folding leaf & custom cover
• (2) Isotherm DR160 Refrigerator drawers, starboard (under staircase)

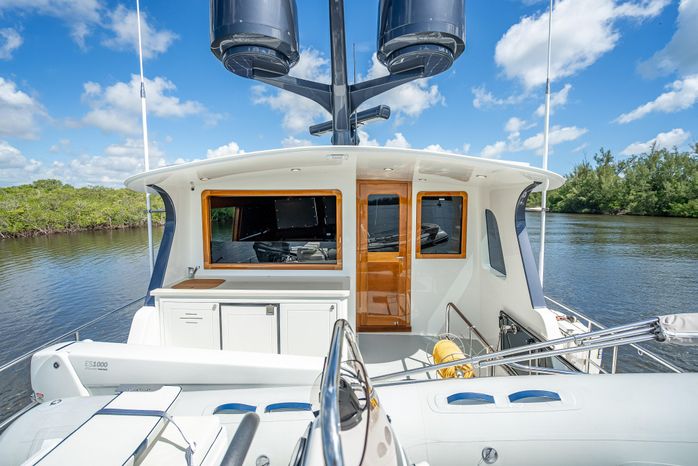

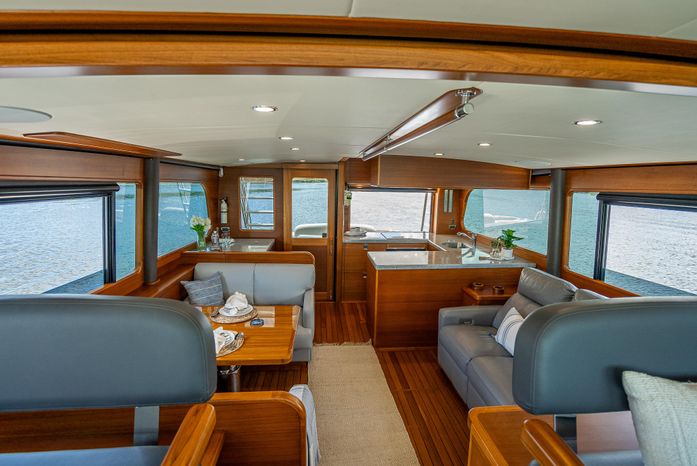

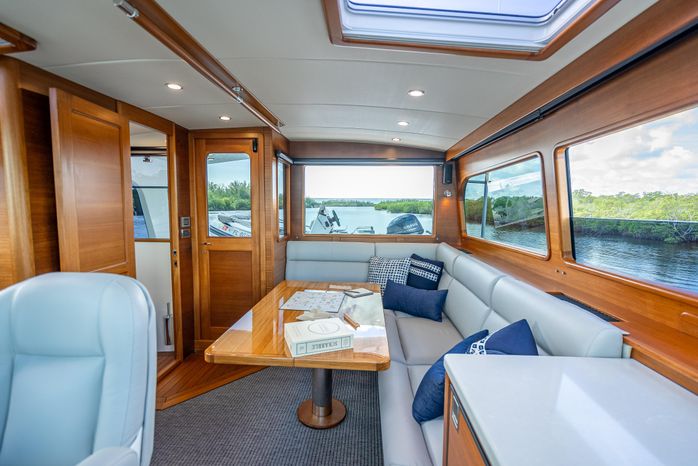

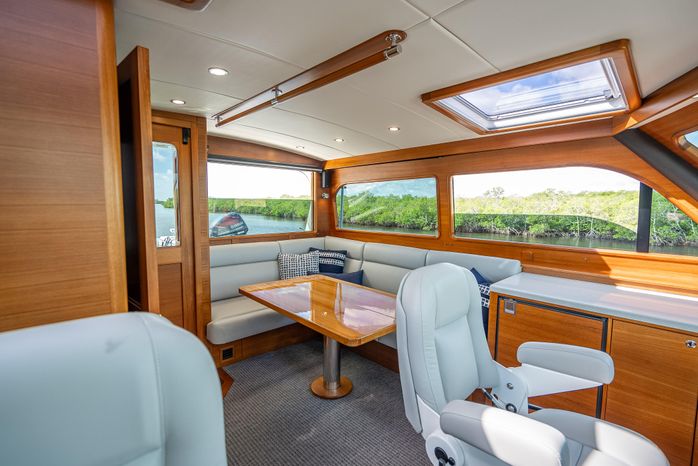

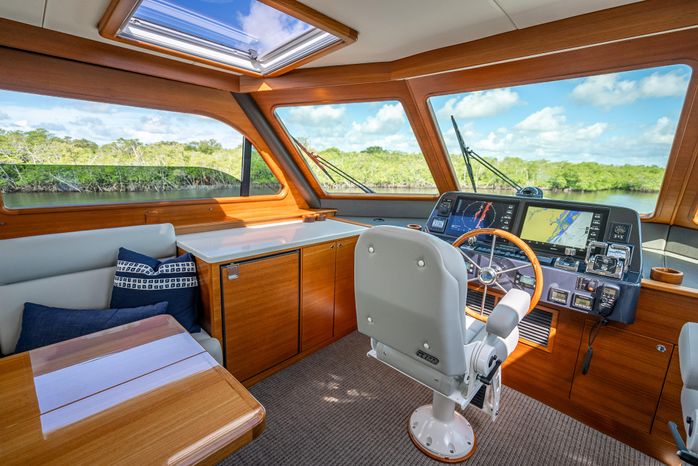

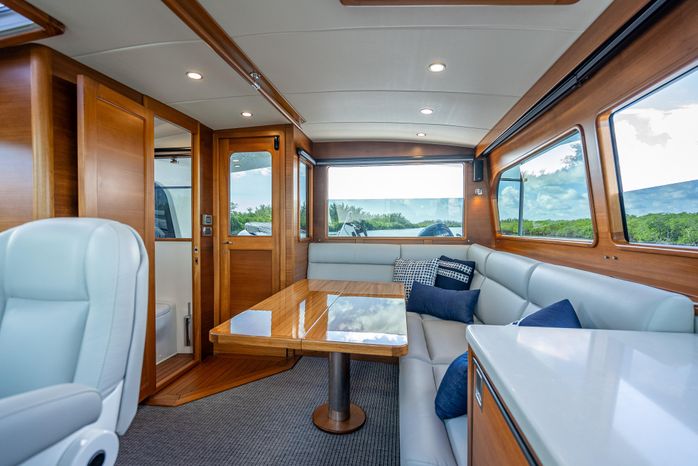

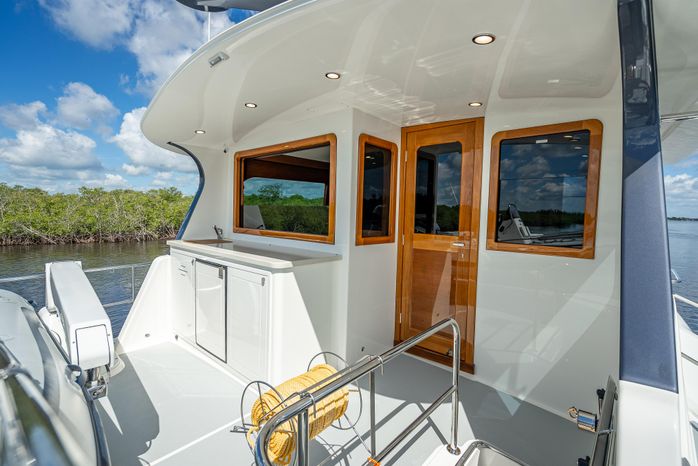

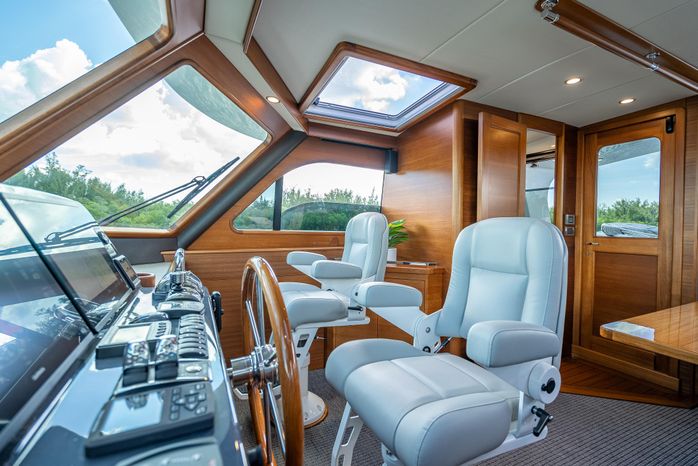

Skylounge

• Flybridge Optional: Flybridge with fully Enclosed Skylounge complete with electric sliding windows (port, starboard & aft) using toughened glass, (2) sliding hatches on hardtop, helm station, guest seating, starboard day head; external wet bar and external aft staircase
• Custom Carpet, Couristan Creations: Antigua CBD3/0004 Cobblestone, Upgrade
• Ritchie Compass, flush mounted on top of electronics console
• Door: aft, hinged, interior Teak inlay

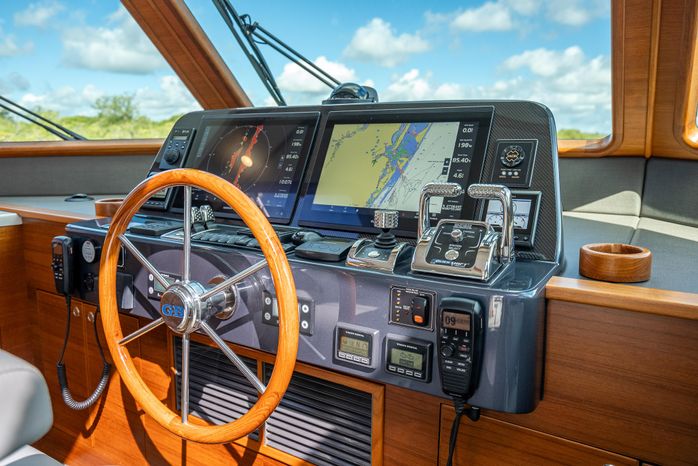

• Electronics console, Fabric body and Carbon Fiber instrument panel
• Storage cabinet below helm station
• Isotherm CR130 drink refrigerator, in Skylounge

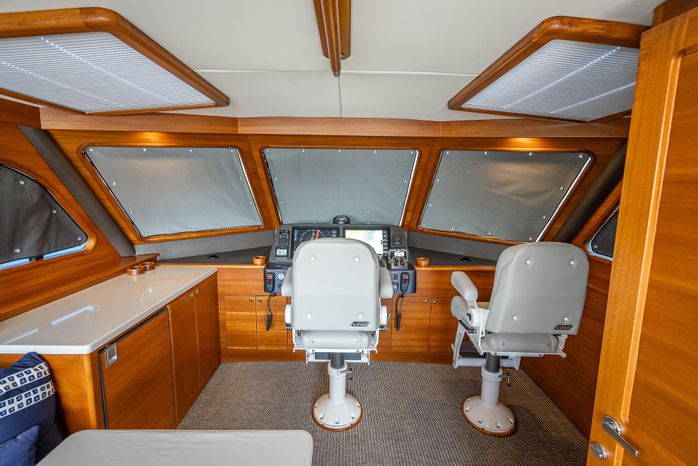

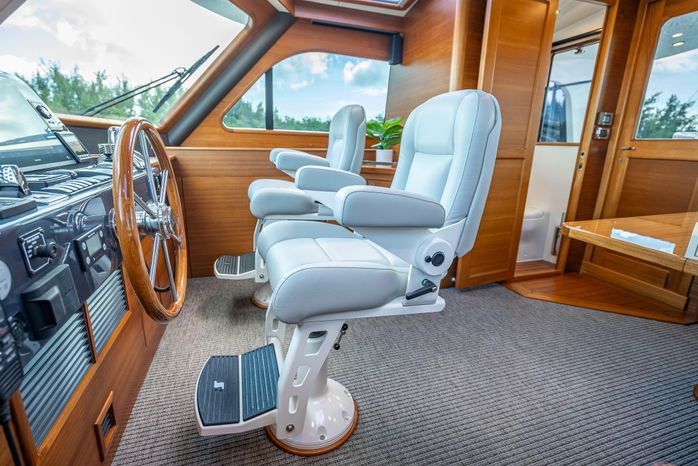

• Helm-seats, (2) STIDD Admiral Low Back, w/deluxe chrome package & cupholders
• Steering wheel, stainless steel & Teak rimmed

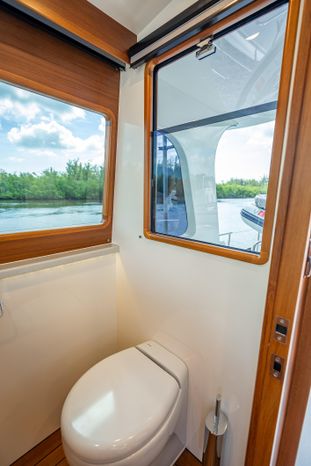

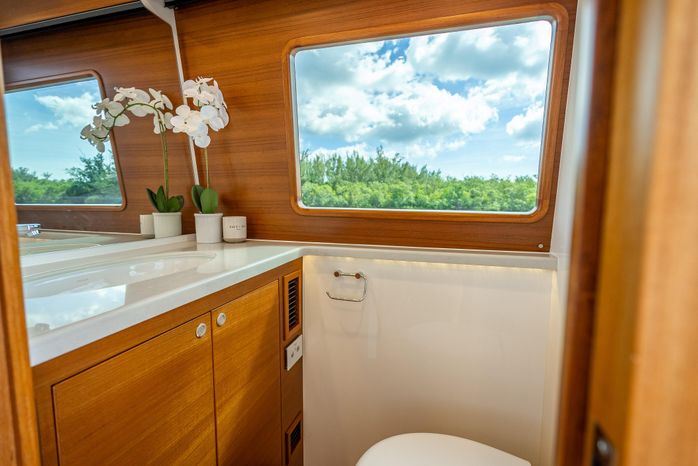

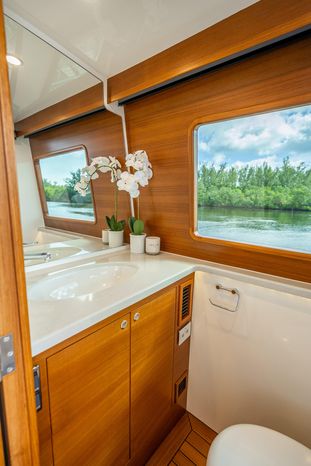

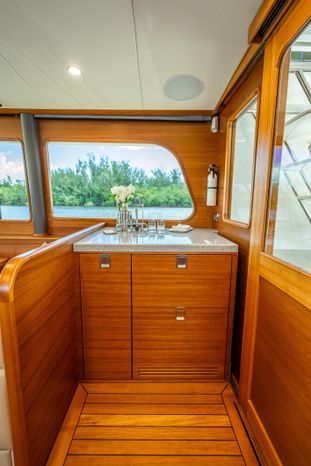

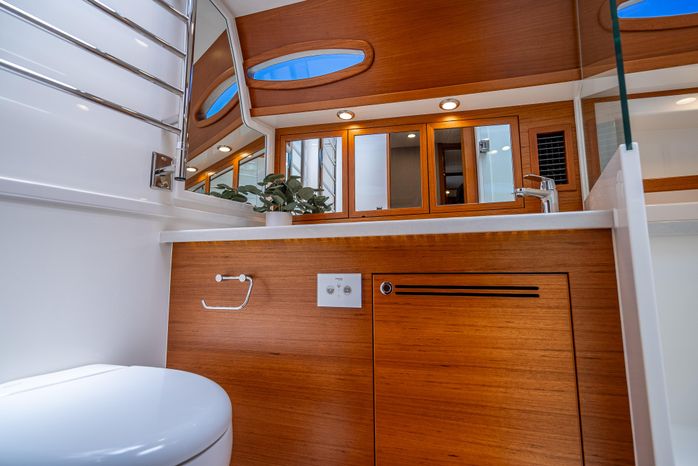

• Day Head, to starboard w/Porcelain toilet, solid Silestone "Desert Silver" counter with under-counter storage, Porcelain sink and opening window
• Large electric windows port, starboard & aft
• Port L-settee, forward-facing, molded fiberglass w/under-seat storage & cushions
• Table, stainless steel pedestal, varnished fixed high gloss Teak
• Storage cabinet port, forward
• Custom Lighting and Switches; helm red overhead lights with dedicated switches at Skylounge Helm
• Grab Rails: Teak bars, stainless steel fittings to ceiling
• Wet Bar with sink, and additional Isotherm CR130 drink refrigerator, flybridge aft (Upgrade)
• Wet Bar Countertop, Silestone "Desert Silver"

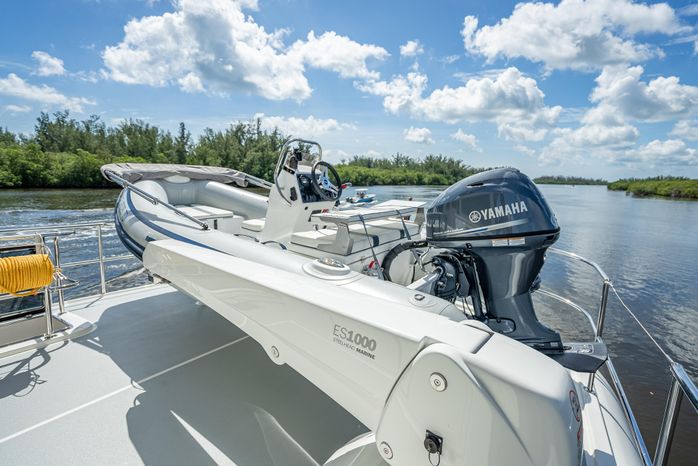

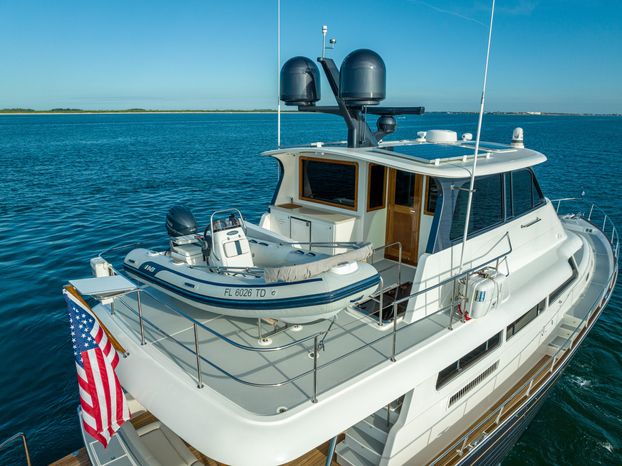

• Crane/Davit, Steelhead ES1000

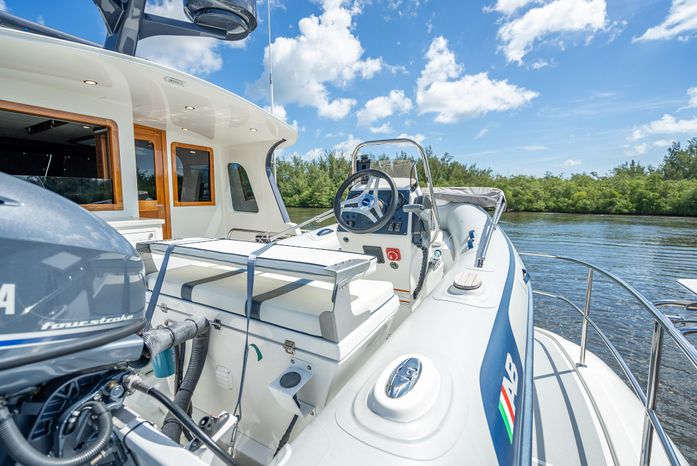

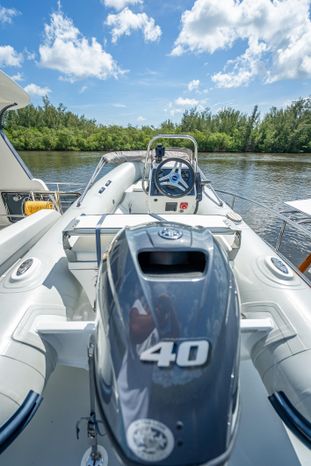

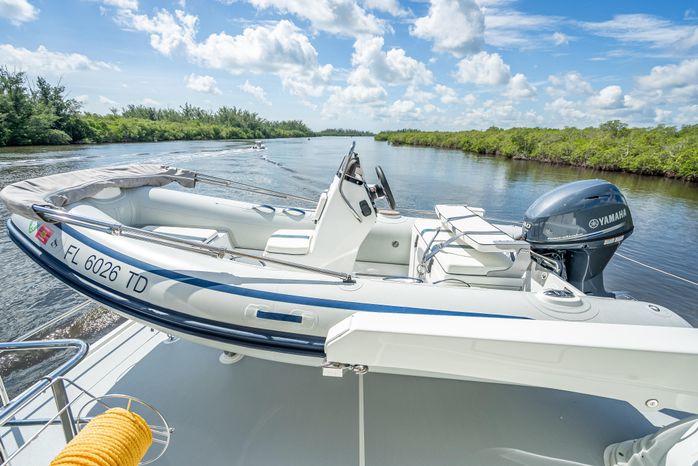

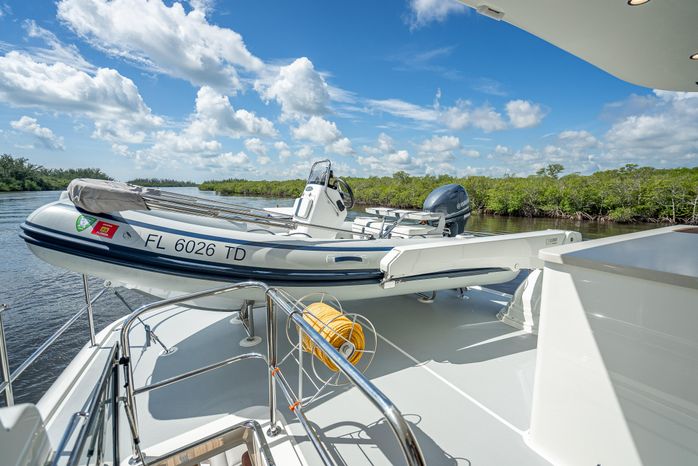

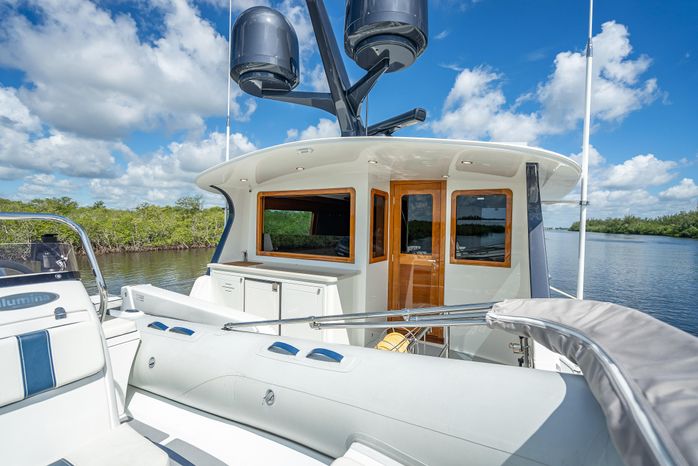

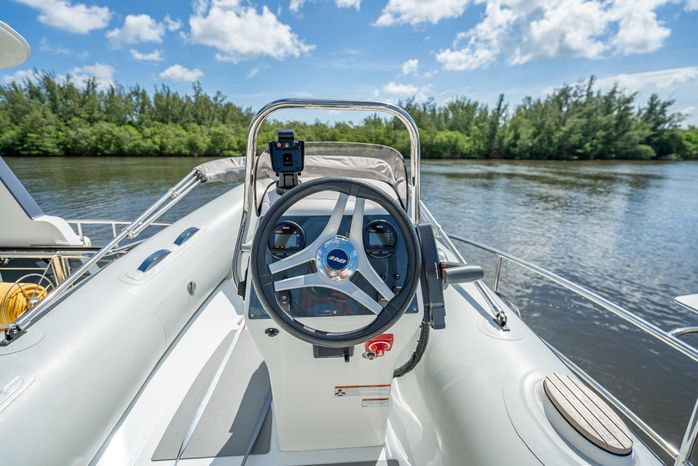

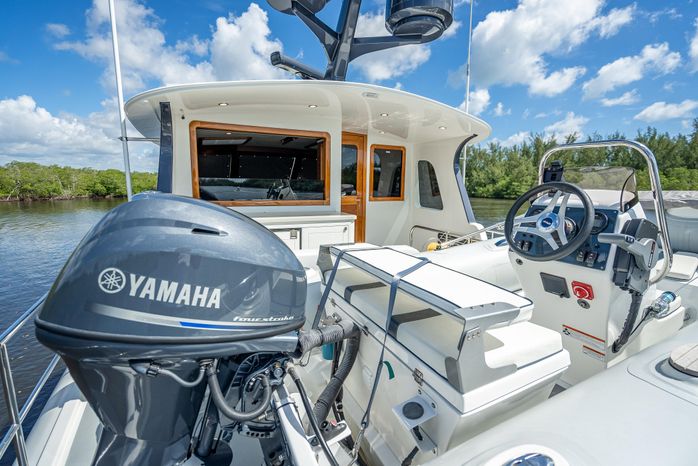

• Upgraded 13’ AB Alumina 13 ALX tender (larger than standard) w/ Yamaha 40hp outboard, Garmin Plotter & Transom Depth Transducer; tender and outboard both have canvas covers
• Skylounge Settees and STIDD helmseats finished in UltraFabrics “Pumice”

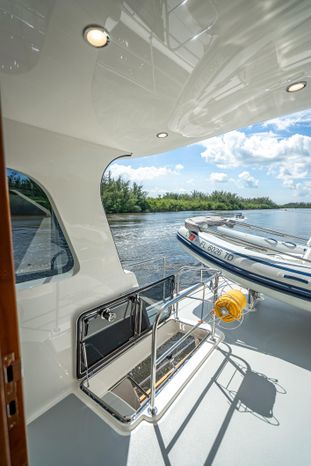

• Deck hatch, hinged for access from Cockpit to Flybridge
• Decking, painted non-skid, Awlgrip “Moondust”
• Locker, fiberglass molded, to port

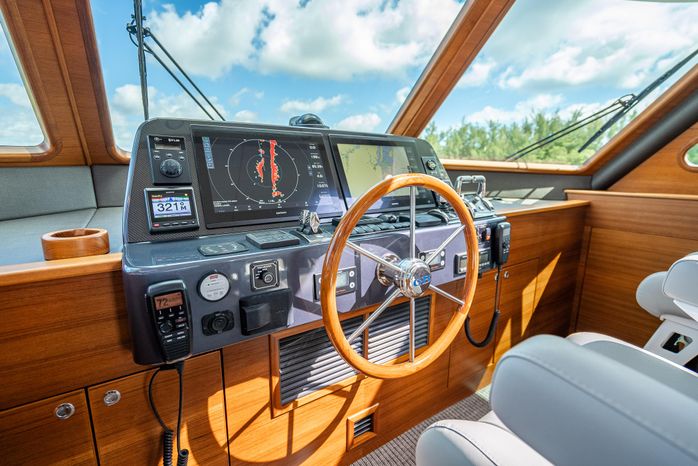

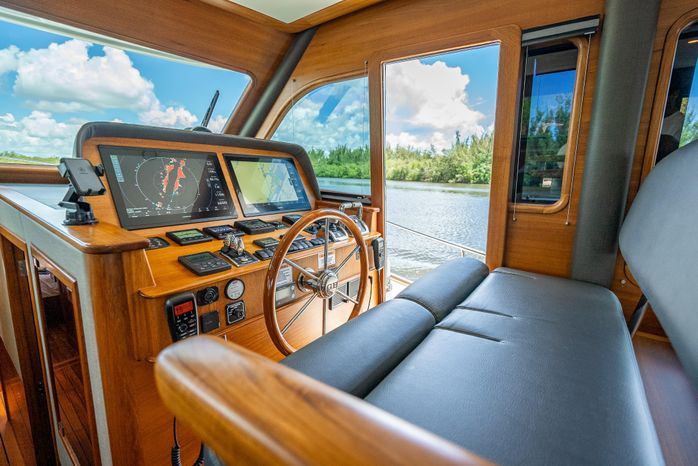

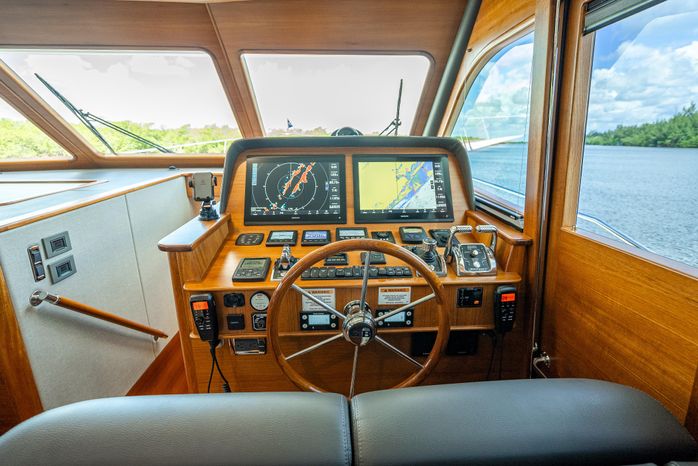

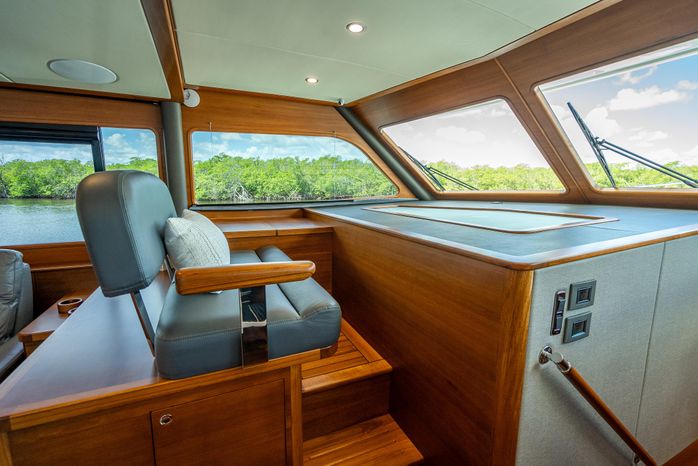

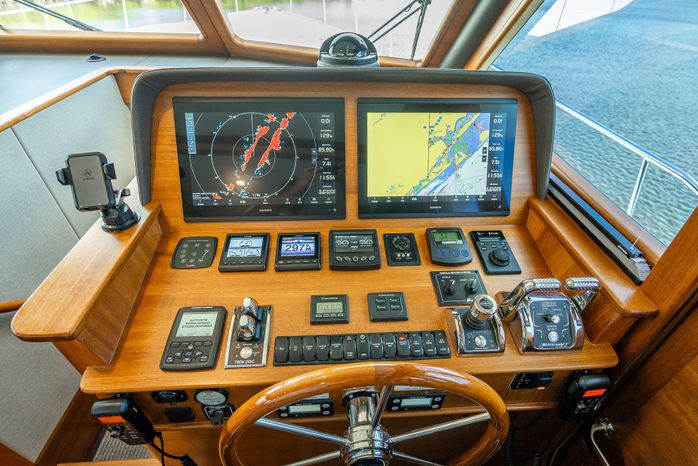

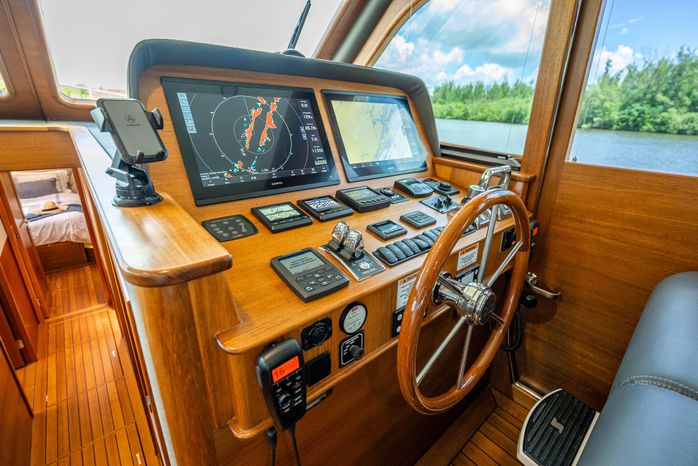

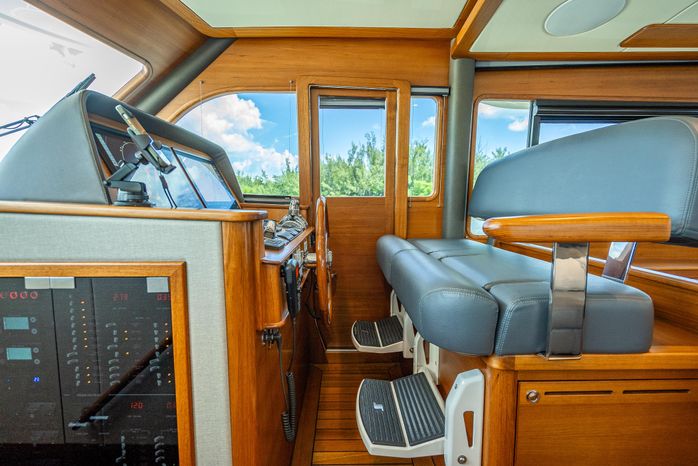

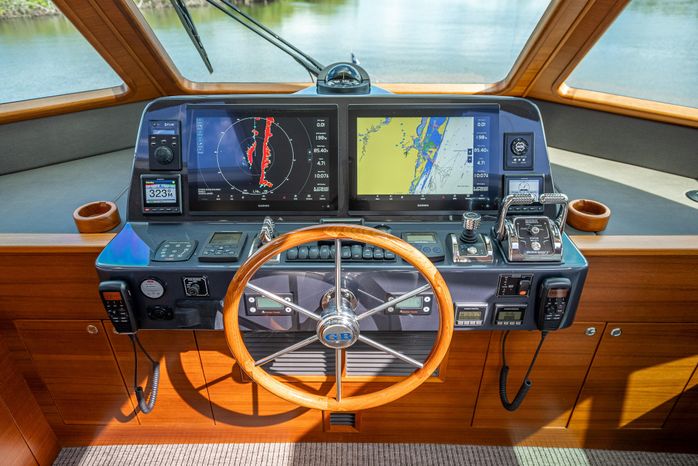

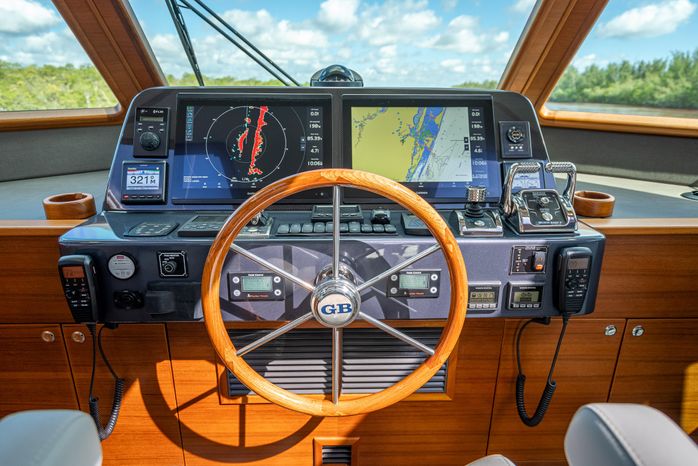

Lower Helm

• Custom Lighting and Switches; helm red overhead lights with dedicated switches at Lower Helm
• Pilothouse Door, at starboard side of lower station for easy side deck access, interior Teak inlay
• Ritchie Compass, flush mounted on top of electronics console

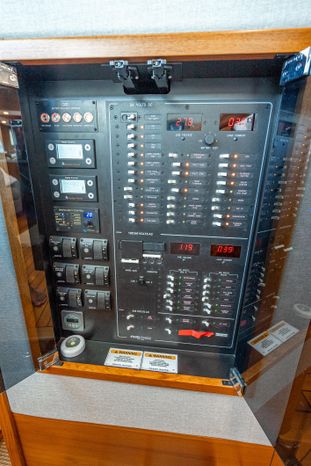

• Electrical Panel with Custom frameless Smoked Glass door, Upgrade

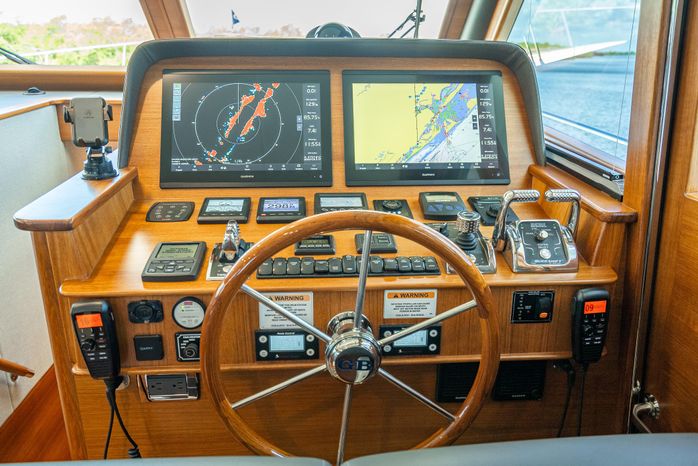

• Electronics console, Fabric body and Teak instrument panel

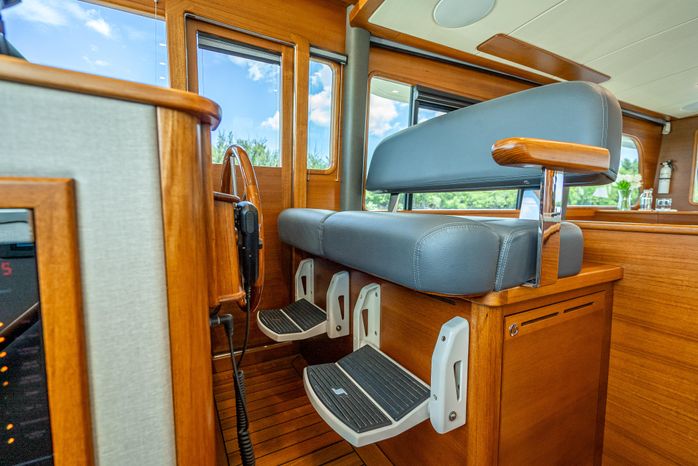

• Helmseat (starboard) & Companion seat (port) are Custom GB double benchseats, Upgrade
• Steering wheel, stainless steel & Teak rimmed

Electronics:

Garmin Navigation Package: (2) x Helm Stations Package

• (4) x 8617 Radar/Plotter; (2) at each helm (upgrade for additional plotter)
• (2) x Garmin Autopilot with backup pilot pump
• GSD 25 Fishfinder/Sounder
• Garmin VHF315 Radio x 2
• AIS800
• Garmin WiFi
• (2) x Engine Room Cameras
• (2) x GMI20
• GMR Fantom 54 Open Array Radar (painted to match mast color)
• Additional GMR Fantom 24 Radar (Radome), Upgrade
• Chain counter, at both helms
• Premium forward-looking sonar Panoptix PS51-TH
• Additional Cameras (Upgrade)
• (1) x Reversing Camera
• (1) x Salon Monitoring
• (1) x Flybridge
• Night Vision Camera – FLIR M364C
• Weather Station, Airmar 220WX, Upgrade
• Weather Receiver/Antenna, Garmin GXM 53 SiriusXM Receiver, Upgrade
• Custom Antennas: 2x Shakespeare 6018-R Phase III 5.3m Antennas with 1x GME AM/FM 1.2m; LMR-400 Upgraded Cables; 1x additional GPS Antenna (inside Dummy Dome), Upgrade

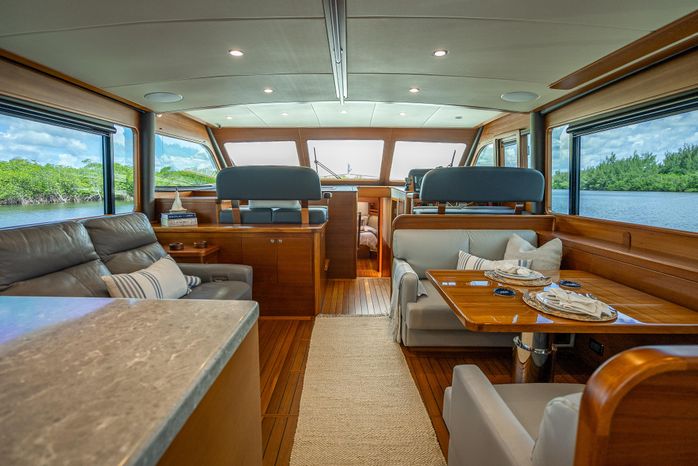

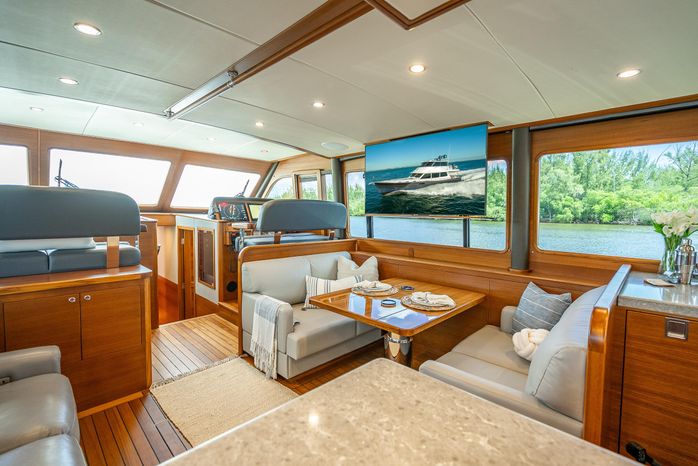

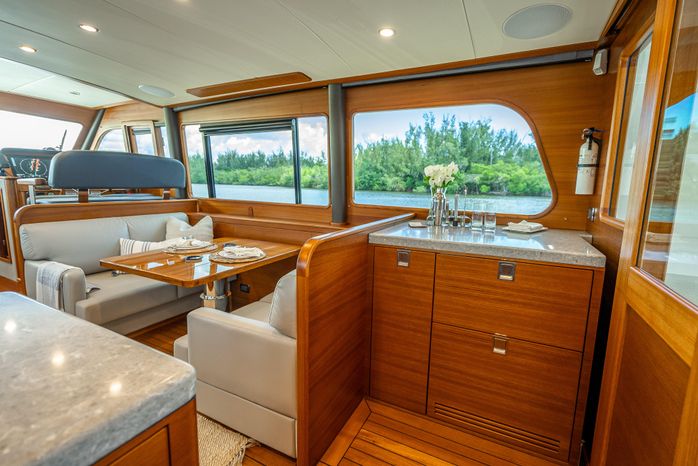

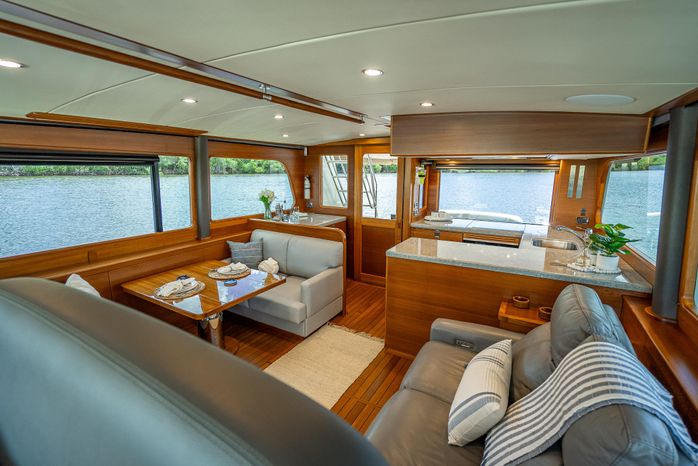

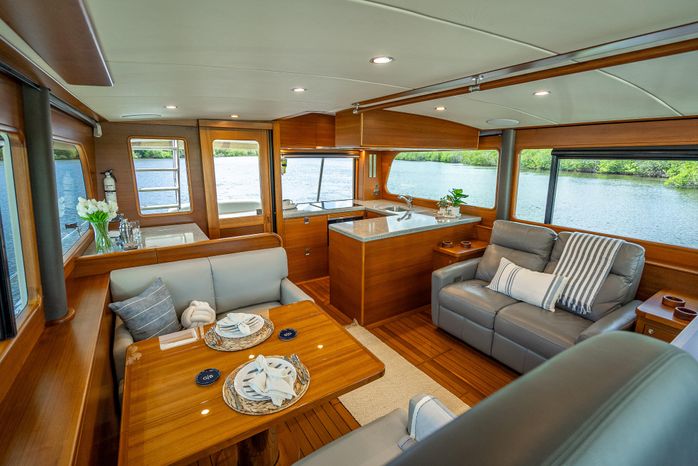

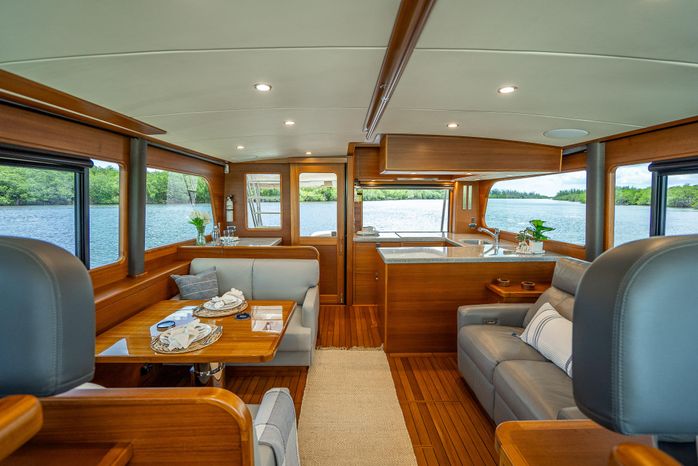

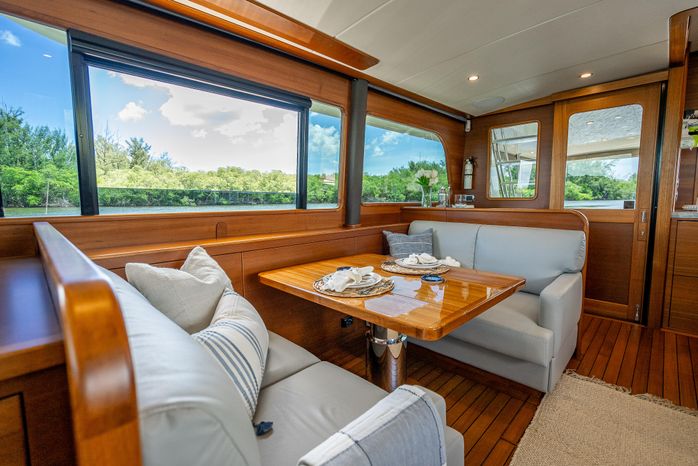

Salon

• Grab Rails: Teak bars, stainless steel fittings to ceiling
• Engine removal, soft patch

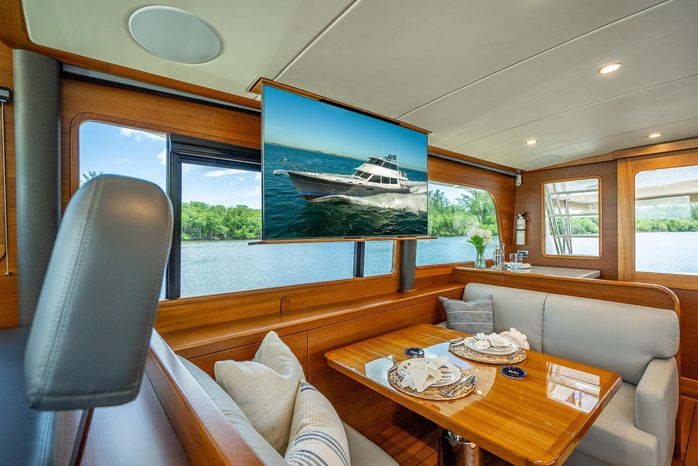

• Samsung 55” LED Smart TV drop-down in Salon roof

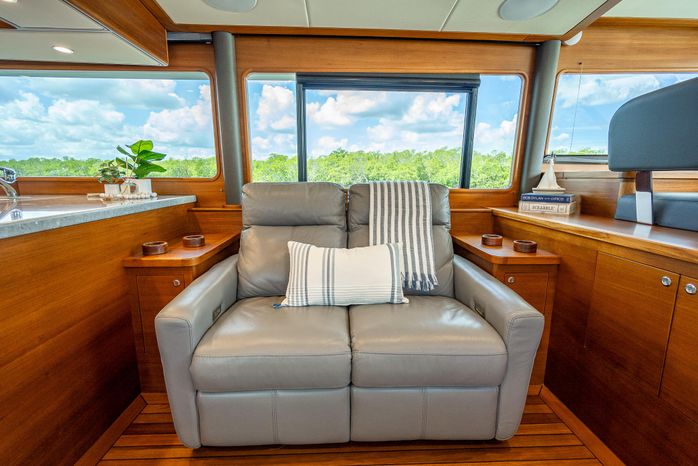

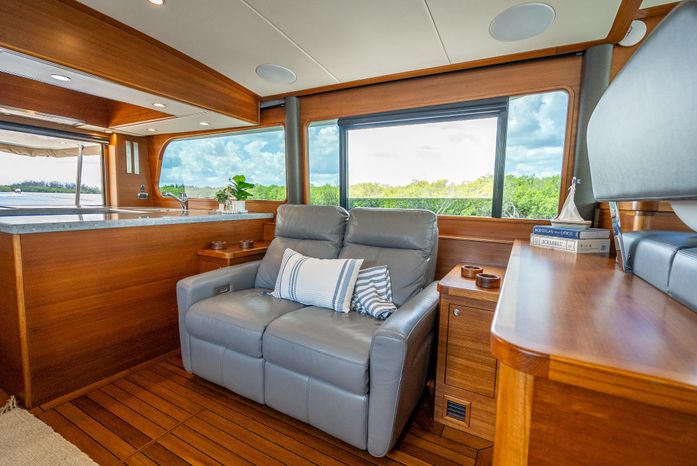

• Port Layout Custom Love Seat, Upgrade

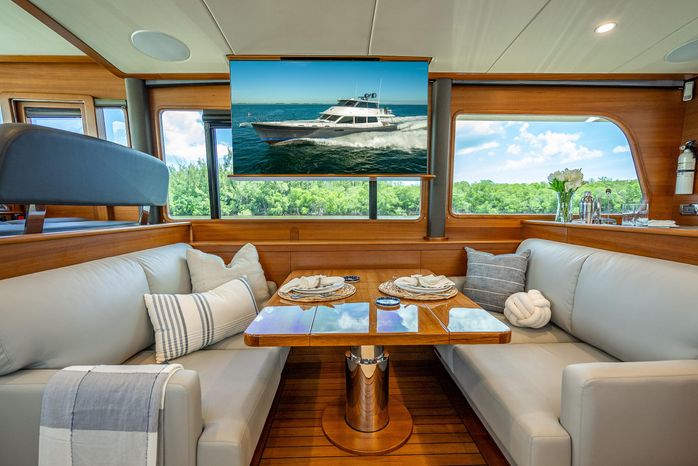

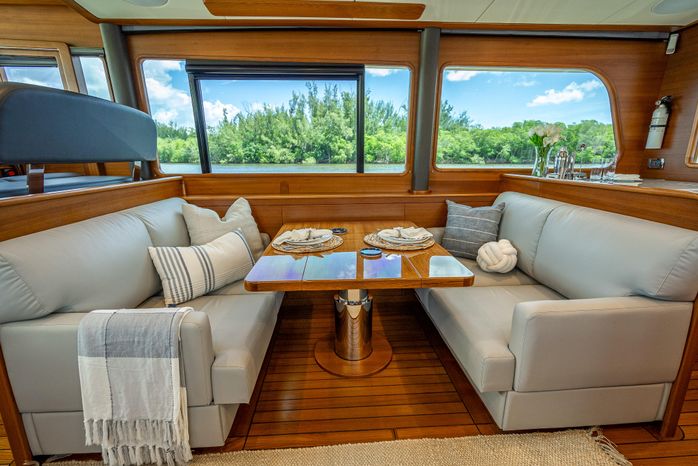

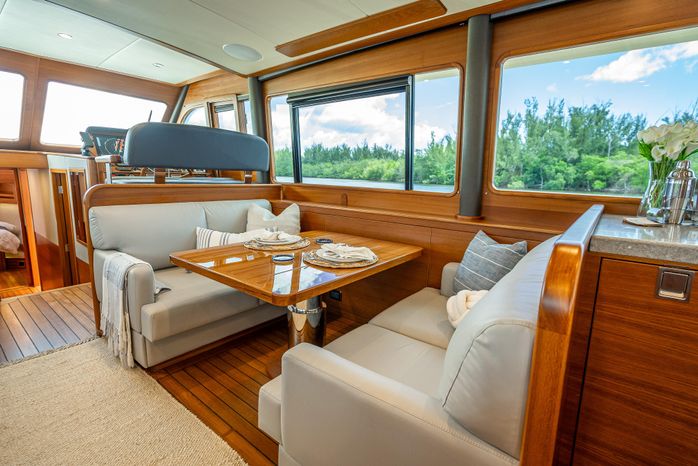

• Salon Dining Table, Custom Hi-Lo Folding Table w/ATEP Telescopic two-stage INOX Electrical Pedestal, Custom Upgrade

• Custom storage under fore-aft lounge settees, Upgrade
• Flooring, Teak

• Bar cabinet, bottle and accessory storage
• Window, Electric drop down port aft large window
• Poseidon Custom Blinds for Salon windows, Upgrade
• Phantom Custom Screens for all (3) powered windows & Salon aft door, Upgrade

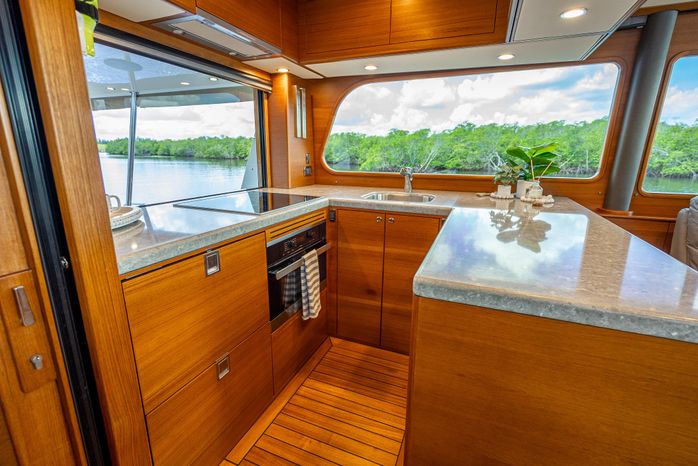

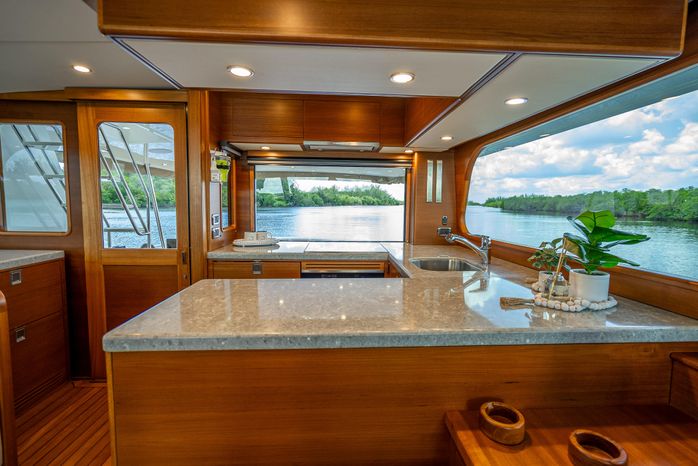

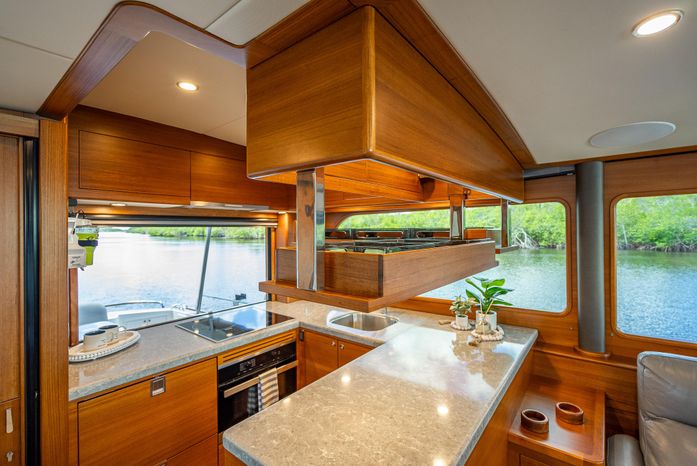

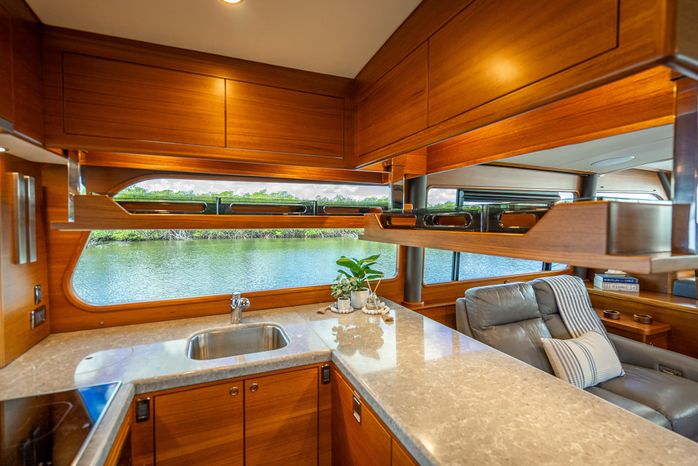

Galley

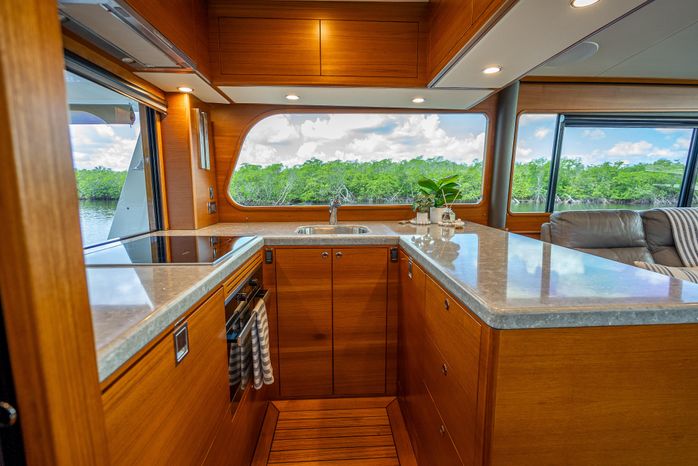

• U-shaped Galley located port aft
• Dumbwaiter/Food Lift – Custom made food/supply lift between Galley & Skylounge, Custom Upgrade
• Custom drop-down window opens to Aft Deck
• Cooktop, Miele KM6320 induction 3-heat zone
• Fan/Vent, Miele Rangehood DA 3466
• Fridge/Freezer – (2) units Isotherm DR160 Refrigerator drawers to port; and (1) SubZero ID-24F drawer Freezer to starboard.
• Microwave/Oven, Miele H6200BM Speed Oven
• Dishwasher, Miele G4780 SCVi
• Countertop, Silestone "Ocean Jasper"
• Sink w/Grohe Eurodisc pull-out Faucet w/Dual Spray
• Trash Compactor, Krushr K012, Upgrade

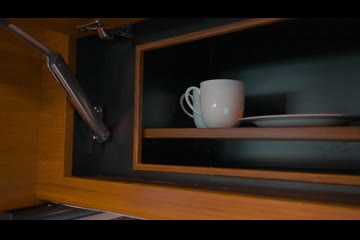

• (2) Overhead Galley Lockers, Custom Electric Hi-Lo overhead lockers, (1) forward & (1) outboard
• (1) Overhead Galley Locker, fixed aft
• Lockers, Teak, storage
• Flooring, Teak
• LED overhead lighting
• Custom enlarged trash receptacle, Upgrade

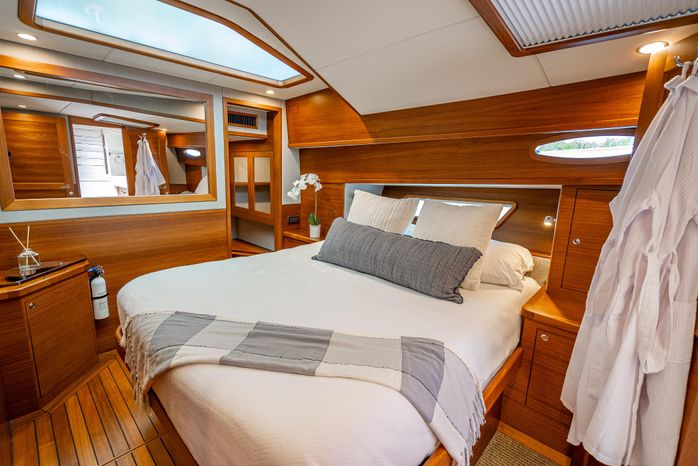

Master Stateroom

• Private En Suite Head
• Island Queen Berth; King in length, Custom
• (2) Reading lights, DC

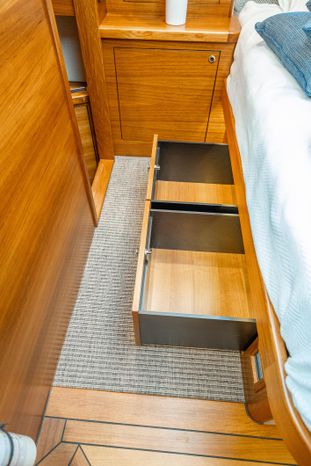

• (2) Nightstands with drawers
• Samsung 43” LED Smart TV
• Custom Teak-trimmed Mirror, aft
• Safe Box, Diplomat Hotel Safe, Custom Upgrade
• Cabinets, Storage throughout

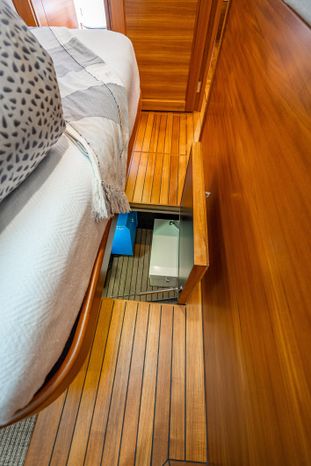

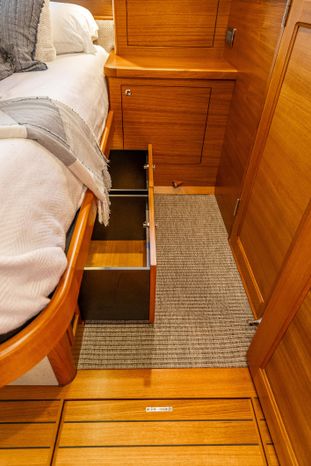

• Custom storage under sole storage hatch (inboard) w/gas strut, Upgrade

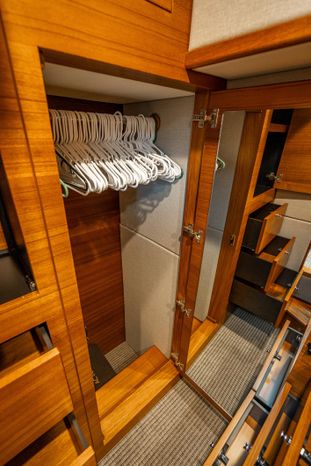

• Cedar-lined Hanging locker
• Skylight hatch, opening, with OceanAir Blind
• Hull-side windows
• Custom Carpet, Couristan Creations: Antigua CBD3/0004 Cobblestone, Upgrade
• Custom Lighting – extra switch near berth

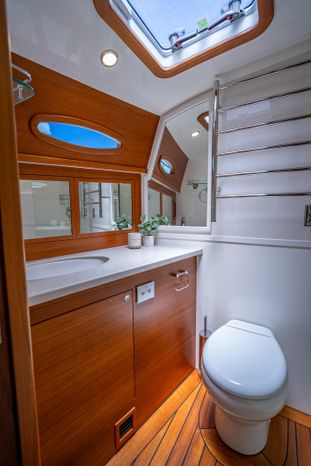

Master Head

• Tecma Silence Plus 2G head, freshwater flush through macerator

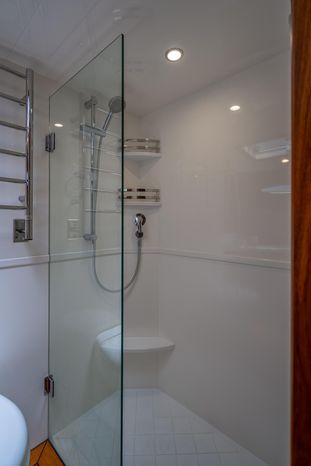

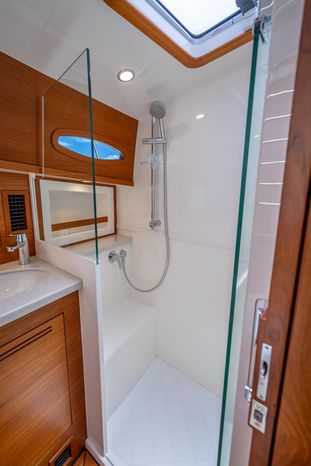

• Shower stall, separate, glass doors, with solid Corian floor
• Shower faucet, Mixer, hand-held
• Shower drain, Whale sump box, DC
• Heated Towel rack, Amba Jeeves model J straight bar towel warmer w/indicator lights, Custom Upgrade
• Countertop, Silestone, "Desert Silver"
• Sink with single lever faucet
• Vanity, above-counter storage with mirrored doors
• Cabinets, under-counter storage
• Skylight hatch, opening
• Flooring, Teak

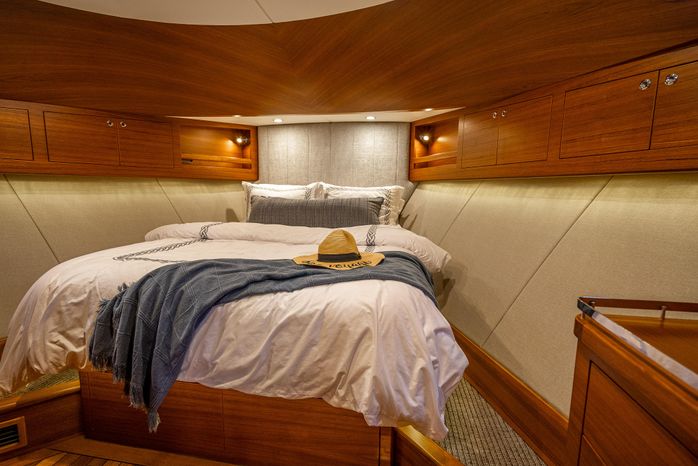

VIP Guest Stateroom, Forward

• Island Queen Berth
• Reading light, DC, LED
• Samsung 43” LED Smart TV
• Hanging locker

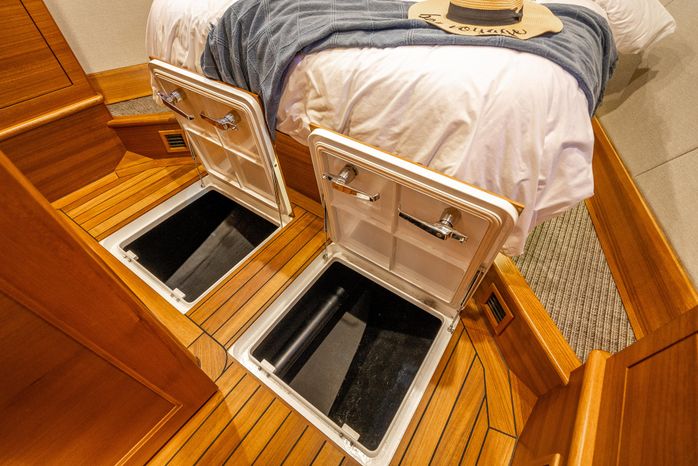

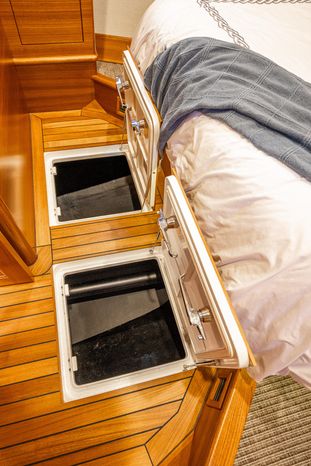

• Custom storage, all bilges under fwd stateroom w/ 2xOlcese Ricci watertight hatch, Upgrade
• Skylight hatch, opening, with OceanAir Blind
• Custom Carpet, Couristan Creations: Antigua CBD3/0004 Cobblestone, Upgrade
• Custom Lighting – extra switch near berth

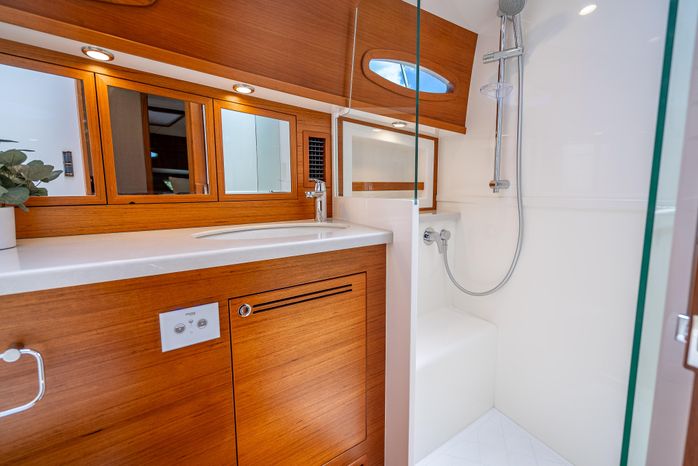

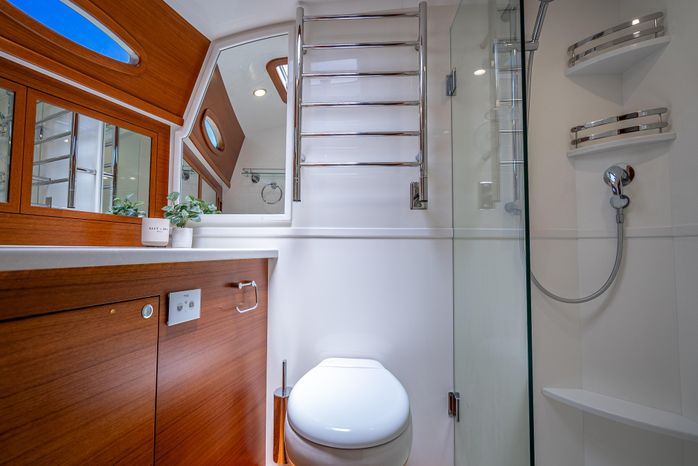

Guest/Day Head

• Sliding Pocket Door, Custom Upgrade
• Tecma Silence Plus head with Teak seat, freshwater flush through macerator
• Shower stall, separate, glass door, with solid Corian floor
• Heated Towel rack, Amba Jeeves model J straight bar towel warmer w/indicator lights, Custom Upgrade
• Countertop, Silestone "Desert Silver"
• Vanity, above-counter storage with mirrored doors
• Shower faucet, mixer, hand-held
• Sink with single lever faucet
• Cabinet, under-counter storage
• Square Lewmar overhead hatch w/frosted glass
• Flooring, Teak

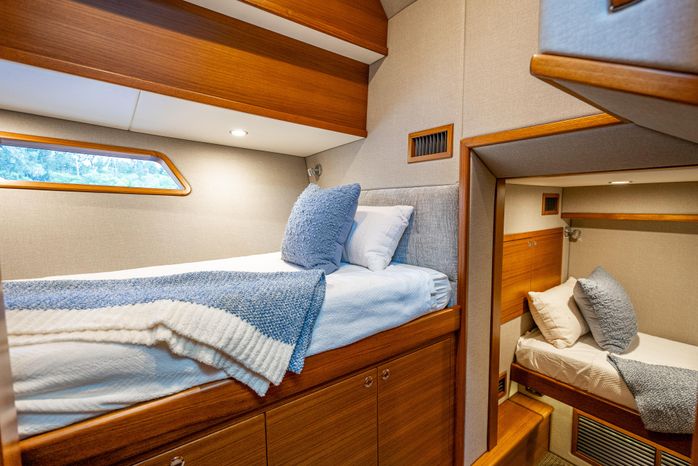

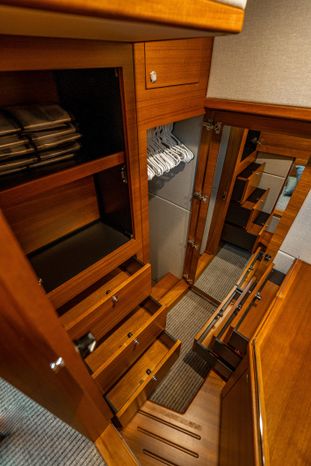

Guest Stateroom, Starboard

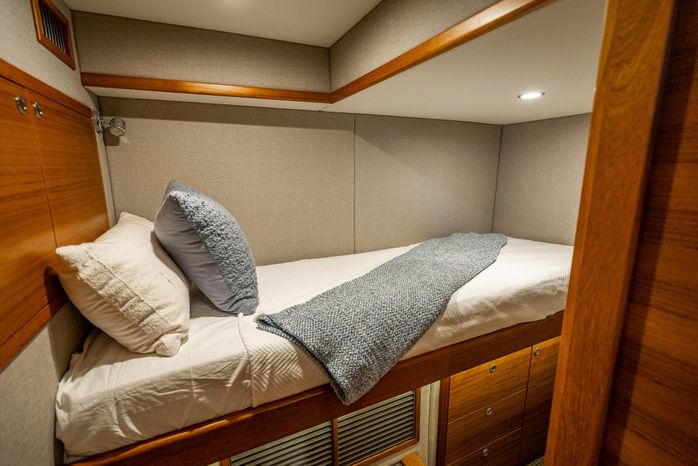

• (2) Single Berths

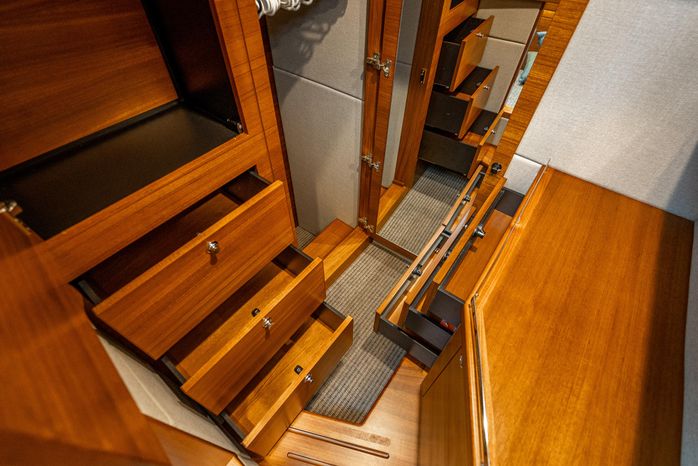

• Numerous storage lockers & drawers
• Reading lights, LED, DC
• Nightstand with storage below
• Custom storage, Upgrade
• Custom Carpet, Couristan Creations: Antigua CBD3/0004 Cobblestone, Upgrade
• Washer/Dryer, Miele full-size stacked units in lieu of combo; hidden in Teak locker, Upgrade

Interior

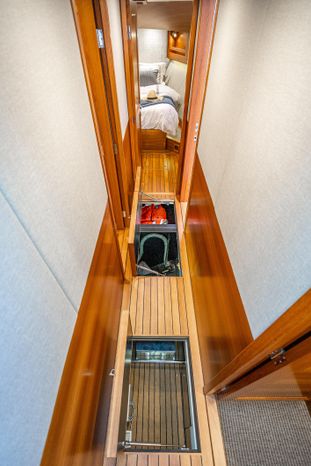

• Custom Additional Storage – Bilges under fwd stateroom w/ 2x Olcese Ricci watertight hatch; storage under fore-aft lounge settees; storage in stbd stateroom; storage under sole storage hatch (inboard) w/gas strut in master stateroom, Custom Upgrade
• All Seating finished in UltraFabrics
• Bulkheads – Teak veneer, textured fabrics
• Cabin doors – Teak, with panels, polished chrome lock sets
• Cabinet furniture – Burmese Teak, flat door
• Countertops – Silestone: "Ocean Jasper" in Galley & Cockpit; "Desert Silver" in Flybridge/Skylounge & Heads
• Drawers – Soft close, positive lock
• Flooring – Custom Carpet, Couristan Creations: Antigua CBD3/0004 Cobblestone in Skylounge & Staterooms, Upgrade
• Flooring – Teak in Salon, Galley, Helm Area, Companionway, Master Stateroom (inboard area), Forward VIP Stateroom, and Heads
• Flooring - Corian in Showers
• Hardware – Stainless steel and chrome
• Headlining – Vinyl panels, foamed back, removable with Fast Mount System
• Lighting: DC, LED
• Portlights: lower deck
• Indirect lighting – Salon only, at valance, LED
• Interior Varnish – Satin marine finish
• Switches & outlets – Vimar modular system
• Privacy Locks for all stateroom doors

Exclusions

Owner's personal belongings. A complete list will be provided upon request.

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
